Intelix DIGI-HD-4X8 HDMI and IR via Twisted Pair Distribution System
High-Definition 4:8 Distribution Amplifier with Cat-5 / Cat-6 Twisted-Pair Outputs
Intelix DIGI-HD-4X8 HDMI and IR via Twisted Pair Distribution System
The Intelix DIGI-HD-4X8 HDMI Distribution Amplifier distributes four HDMI sources to as many as eight remote locations, using either one of eight HDMI outputs or twisted-pair cabling, such as Cat5 or Cat6.
Built-in HDshāk® technology provides dynamic HDMI, EDID/DDC and HDCP mode selection, guaranteeing performance and image quality. Plus, onboard HDMI amplification and buffering allows multiple receivers to be daisy-chained for greater distances.
If you take a look at the back panel, you will find four HDMI inputs, eight HDMI outputs and eight twisted-pair extender outputs and one IR return jack and four IR pass through jacks. To distribute HDMI only, only one single Cat5e/6 cable is required. If IR control from the remote zone(s) is also needed, two Cat 5e/6 cables are required.
When using Cat5e twisted-pair cable, the maximum range is 200 feet for 480i / 480p / 720p / 1080i signals and 100 feet for 1080p signals. If using shielded Cat6, the maximum range is extended to 300 feet for 480i / 480p / 720p / 1080i signals and 150 feet for 1080p signals. For even more range, cascade up to five DIGI-HD-XR repeaters.
The DIGI-HD-4X8 is HDMI version 1.3 capable as well, making it a perfect choice for more advanced systems. Advanced chipsets and firmware promise superior HDCP compatibility and trouble-free operation.
Included in the box is the DIGI-HD-4X8 unit itself, power supply, (1) wireless remote control, (1) IR Receiver, (4) IR Emitters, (2) rack ears and (4) shelf feet.
Twisted-pair receivers are sold separately (below), so you can get exactly the functionality you need. Use any combination of receivers, up to a total of eight receivers. (add to your cart below):
- DIGI-HD-UHR2-R Enclosed Receiver - HDMI (only), one twisted-pair cable required
- DIGI-HD-UHR2-WP-R Wallplate Receiver - HDMI (only), one twisted-pair cable required
- DIGI-HD-IR3-R Enclosed Receiver - HDMI and bi-directional IR, two twisted-pair cables required
- DIGI-HD-IR3-WP-R Wallplate Receiver - HDMI and bi-directional IR, two twisted-pair cables required
- DIGI-HD-XR Enclosed Receiver / Repeater - use to extend range and/or to add cascaded HDMI outputs.
As with virtually all systems that are based upon twisted-pair cable technology, the Intelix HDMI Twisted-pair Distribution System will work with virtually any twisted-pair cables, including Cat-5e and Cat-6, but range and bandwidth is directly related to both distance and cable quality, so to get the highest resolutions at the greatest distances, you will want high-quality, low-skew cables. Check the installation manual for more information. If you want the very best pre-terminated cables, please consider our VideoTwist cables.
Like most Intelix products, the DIGI-HD-4X8 comes with a two year limited warranty from the manufacturer.
Intelix's Description
DIGI-HD-4x8 Twisted Pair Distribution Amplifier
A true matrix switcher, the DIGI-HD-4X8 features four HDMI inputs, eight HDMI outputs and eight twisted pair extender outputs—and both HDMI and twisted pair outputs are live simultaneously. When used in conjunction with a compatible Intelix twisted pair receiver, the matrix extends output signals up to 300 feet over a single twisted pair cable. Trademarked HDshāk processing provides local remote display EDID storing and enhanced bandwidth limiting, thereby allowing the installer to optionally disable high-bandwidth HDMI elements—such as deep color, 3D and HD audio—to guarantee performance when using low-grade cables.
The matrix supports 1080i and 1080p high-definition video and is HDCP compliant. All operations are controlled via a diagnostic front panel interface or remotely via RS232, IR, or Ethernet. The system also ships with a wireless remote control and includes rack ears to install in a 19”rack.
In addition, the DIGI-HD-4X8 also features four pass-through IR channels which distribute remote IR commands from in-room controllers over the twisted pair cable and out of the matrix, thereby allowing complete control of sources from the remote destination. The IR channels follow the matrix switching.
Application:
- Distributing four HDMI input to eight locations over twisted pair cable
Features & Benefits:
- 4x8 HDMI twisted pair matrix
- 4 HDMI inputs
- 8 HDMI outputs
- 8 twisted pair outputs
- Compatible with single and dual twisted pair receivers
- HDMI extension up to 300 feet over twisted pair cable
- Front panel, Ethernet, IR and RS232 control
- Rack-mountable
- Built-in IR switching
- 3D compatible
- HDshāk processing
- Wideband IR support
- HDCP compliant
Cross Reference
- Atlona - AT-PROHD85M-SR
HDshāk Processing
Intelix HDshāk technology delivers the highest level of EDID negotiation, ensuring proper source & destination handshaking over twisted pair every time.
[please click here for details]
DIGI-HD-4X8 Downloads

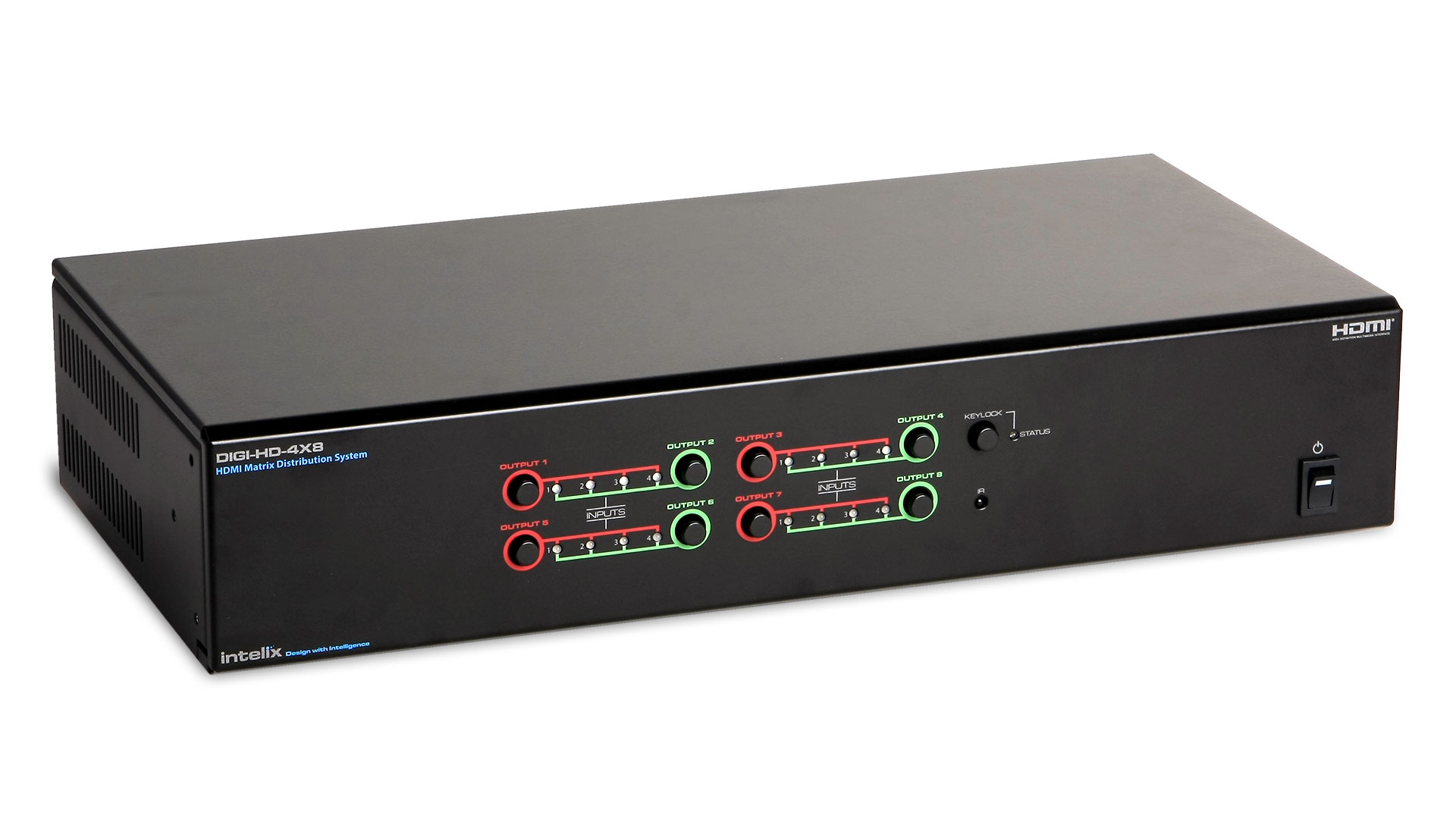

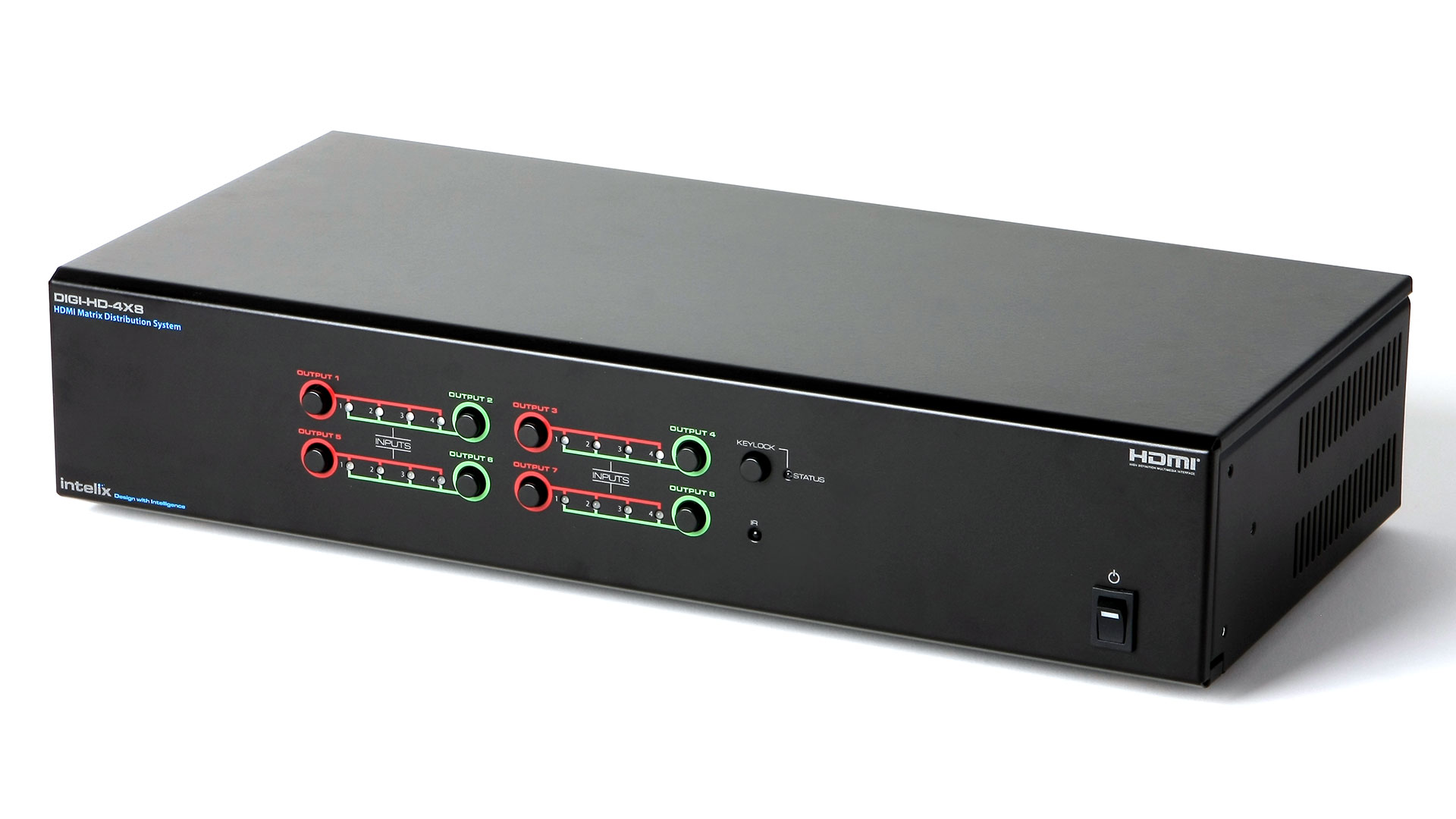

Here is another angle of the DIGI-HD-4X8 front panel.

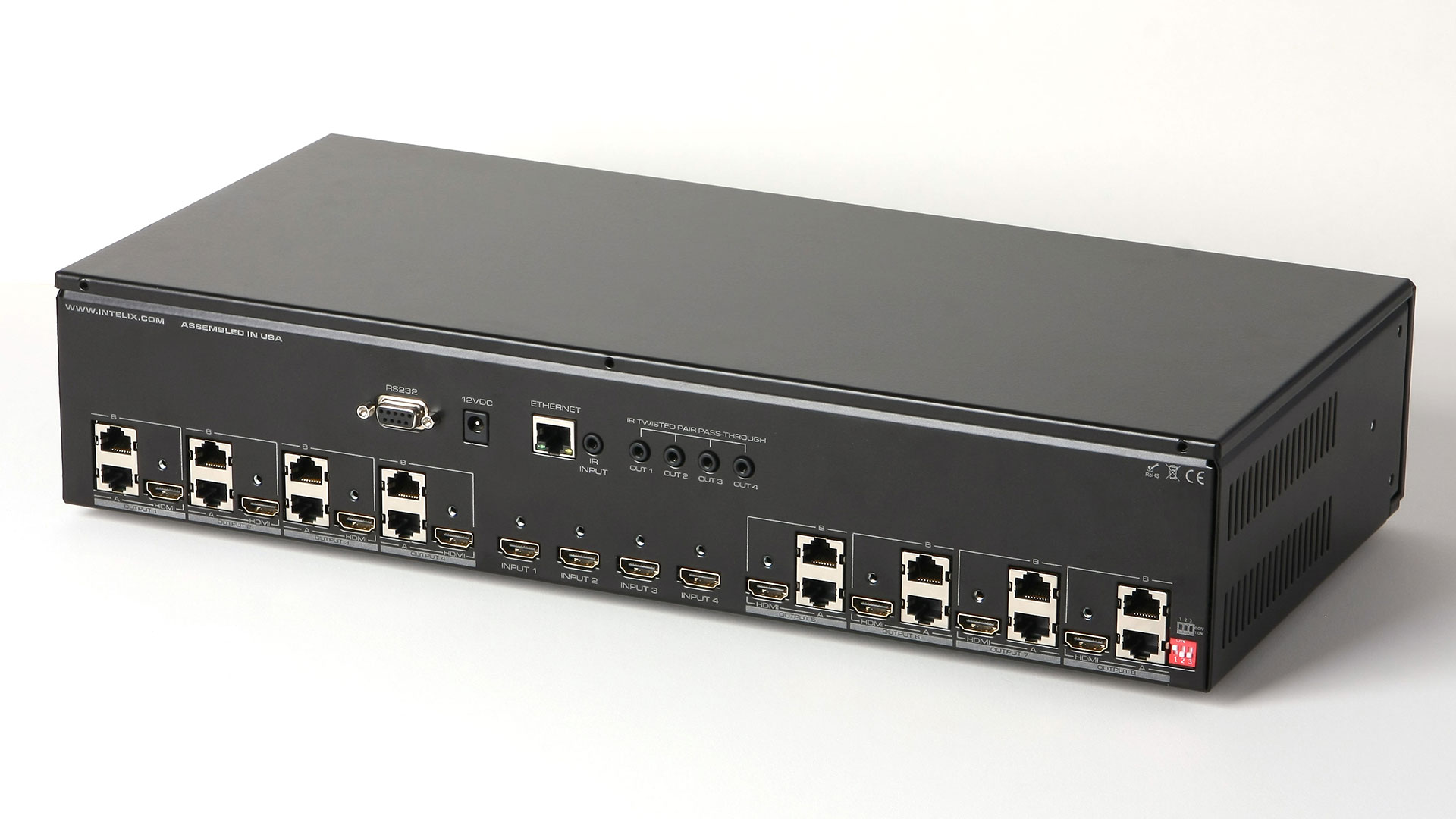

This photo is a view of the back panel.

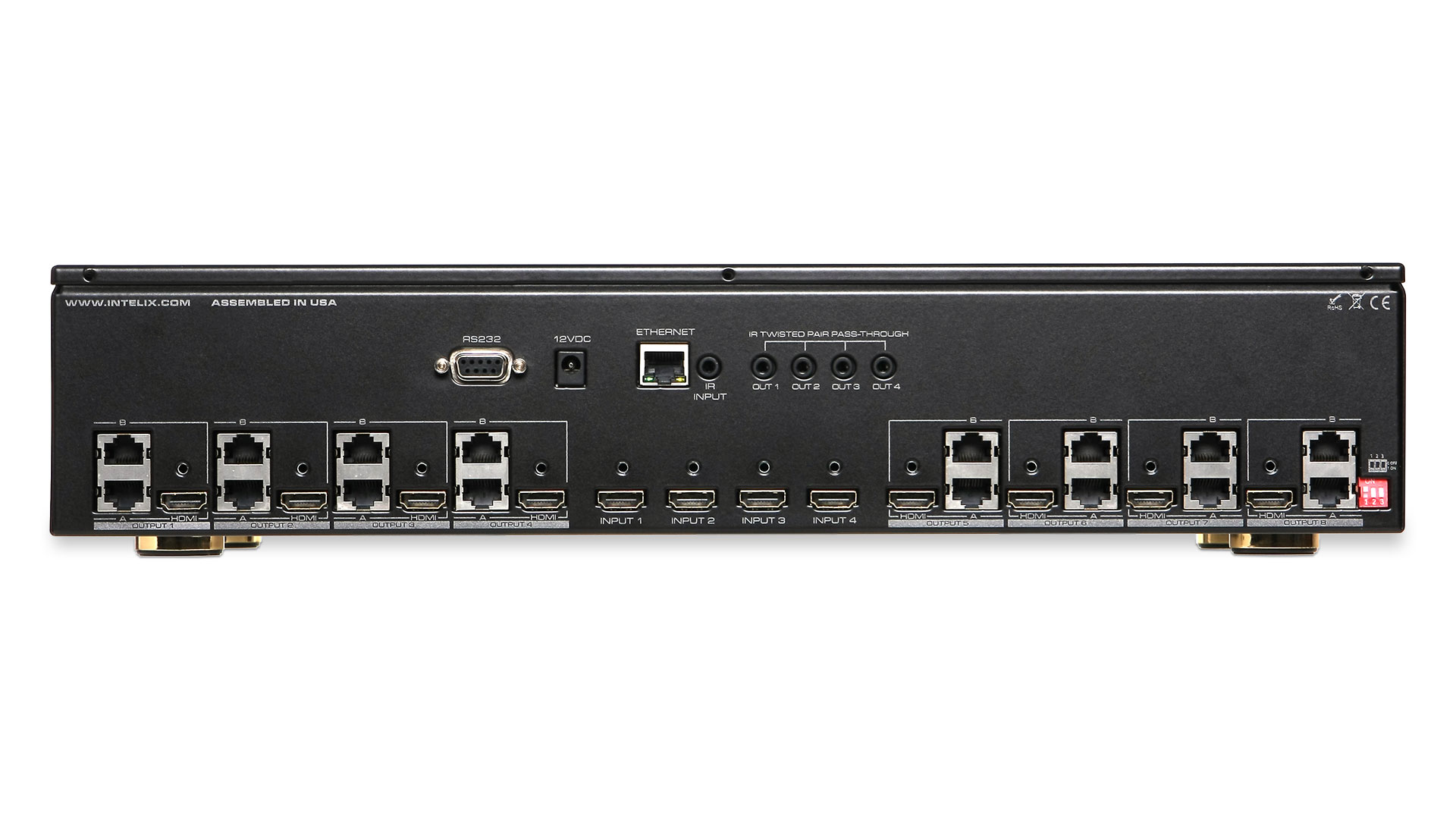

Here's a closer look at the back panel.
Here is the Installation Manual, in PDF format.
This is the spec sheet, in PDF format.
Shown here is an optional enclosed receiver. Use DIGI-HD-UHR2-R for HDMI-only applications, DIGI-HD-IR3-R (shown) when both HDMI and IR are needed, or DIGI-HD-XR to extend and/or cascade both HDMI and IR. Add any combination of up to seven receivers to your cart below.
Here is an optional wallplate receiver. Use DIGI-HD-UHR2-WP-R for HDMI-only applications, or DIGI-HD-IR3-WP-R (shown) when both HDMI and IR are needed. Add any combination of up to seven receivers to your cart below.
