Intelix DIGI-HD-4X4 HDMI Distribution System
High-Definition Matrix Switcher with Cat-5 / Cat-6 Twisted-Pair Outputs
Intelix DIGI-HD-4X4 HDMI Distribution System
High-Definition Matrix Switcher with Cat-5 / Cat-6 Twisted-Pair Outputs
The Intelix DIGI-HD-4X4 HDMI Matrix Distribution System offers features that are not found in competing products.
For example, if you take a look at the back panel, you will find four pairs of twisted-pair output jacks, as you would expect from a twisted-pair distribution system, but what may not be immediately apparent is that the system also has four active HDMI outputs as well. This makes it simple to add one or more local monitors, in addition to the four remote monitors. This 4x4 HDMI matrix system also includes IR pathways for each of the four remote monitors, enabling remote control of the four sources, as well as the distribution system itself.
The DIGI-HD-4X4 is HDMI version 1.3 capable as well, making it a perfect choice for more advanced systems. Advanced chipsets and firmware promise superior HDCP compatibility and trouble-free operation.
Twisted-pair receivers are sold separately below, so you can get exactly the functionality you need. Use any combination of receivers, up to a total of four receivers (add to your cart below):
- DIGI-HD-UHR2-R Enclosed Receiver - HDMI (only), one twisted-pair cable required
- DIGI-HD-UHR2-WP-R Wallplate Receiver - HDMI (only), one twisted-pair cable required
- DIGI-HD-IR3-R Enclosed Receiver - HDMI and bi-directional IR, two twisted-pair cables required
- DIGI-HD-IR3-WP-R Wallplate Receiver - HDMI and bi-directional IR, two twisted-pair cables required
- DIGI-HD-XR Enclosed Receiver / Repeater - use to extend range and/or to add cascaded HDMI outputs.
As with virtually all systems that are based upon twisted-pair cable technology, the Intelix HDMI Twisted-pair Matrix Distribution System will work with virtually any twisted-pair cables, including Cat-5e and Cat-6, but range and bandwidth is directly related to both distance and cable quality, so to get the highest resolutions at the greatest distances, you will want high-quality, low-skew cables. Check the installation manual for more information. If you want the very best pre-terminated cables, please consider our VideoTwist cables.
Like most Intelix products, the DIGI-HD-4X4 comes with a two year limited warranty from the manufacturer.
Intelix's Description
DIGI-HD-4X4 Twisted Pair Matrix Switcher
The Intelix DIGI-HD-4X4 combines professional-grade performance with comprehensive control options, providing an easy-to-use, flexible, and powerful solution for high-definition audio/video distribution applications. A true matrix switcher, the DIGI-HD-4X4 features four HDMI inputs, four HDMI outputs and four twisted pair extender outputs. The matrix supports 1080i and 1080p high-definition video and is HDMI 1.3b compliant. Switching is controlled via a diagnostic front panel interface or remotely via RS232, IR, or Ethernet.
In addition, the DIGI-HD-4X4 features two pass-through IR channels which distribute remote IR commands from in-room controllers, through compatible Intelix twisted pair extenders, up to 150 feet over twisted pair cable, and out of the matrix, thereby allowing complete control remote sources from the destination.
Features
- Four HDMI inputs
- Four HDMI outputs and four twisted pair balun outputs
- 1080i and 1080p compatible
- HDMI 1.3b compliant
- Distributes four IR signals from remote destinations to local sources
- Front panel, Ethernet, RS232 and IR control
- Included wireless remote
- Rack-mountable
HDshāk Processing
Intelix HDshāk technology delivers the highest level of EDID negotiation, ensuring proper source & destination handshaking over twisted pair every time.
[please click here for details]
DIGI-HD-4X4 Feature Focus
HDMI 1.3 compliant. Forget HDMI handshake issues, loss of audio, and video flickers. The DIGI-HD-4X4 features an HDMI 1.3b chipset, providing the most stable and uniform platform for HDMI sources and destinations. Plus, the matrix supports Deep Color and Lossless Digital Audio.
Built-in twisted pair extenders. The DIGI-HD-4X4 features HDMI and twisted pair extender outputs. If the destinations are close, use the HDMI outputs. If the destinations are far away, use the twisted pair outputs and a compatible Intelix receiver. In addition, the HDMI and twisted pair outputs are paralleled, allowing simultaneous use per channel.
Smart negotiation. The DIGI-HD-4X4's on-board CPU automatically negotiates outputs with various resolutions, allowing multiple sized monitors from different manufacturers to be used simultaneously.
Enhanced control. No matter what the application, the DIGI-HD-4X4 has you covered. The matrix features front panel control, Ethernet control, IR control, and RS232 control. In addition, the matrix ships with a wireless remote control.
Shelf-top or rack-mountable. The DIGI-HD-4X4 includes bottom panel mounting feet for shelf-top applications and 19" rack ears for permanent rack installations.
IR pass-through. Tired of third-party IR switchers and patch panels? When used in conjunction with an Intelix DIGI-HD-IR3-R receiver, the DIGI-HD-4X4 matrix distributes remote IR commands over twisted pair cable, through the matrix, and out to local sources. This means the DIGI-HD-4X4 transmits IR signals from your remote destination back to the rack, switches them inside the matrix, and distributes them to your cable boxes, DVD player, or other local source device.
DIGI-HD-4X4 Downloads
- DIGI-HDI-4X4 Technical Specifications
- DIGI-HD-4X4 Installation Manual
- DIGI-HD-4X4 Software
Here is a closer look at the DIGI-HD-4X4 front panel.
This photo shows the back panel.
This drawing illustrates the front and back panels in great detail.

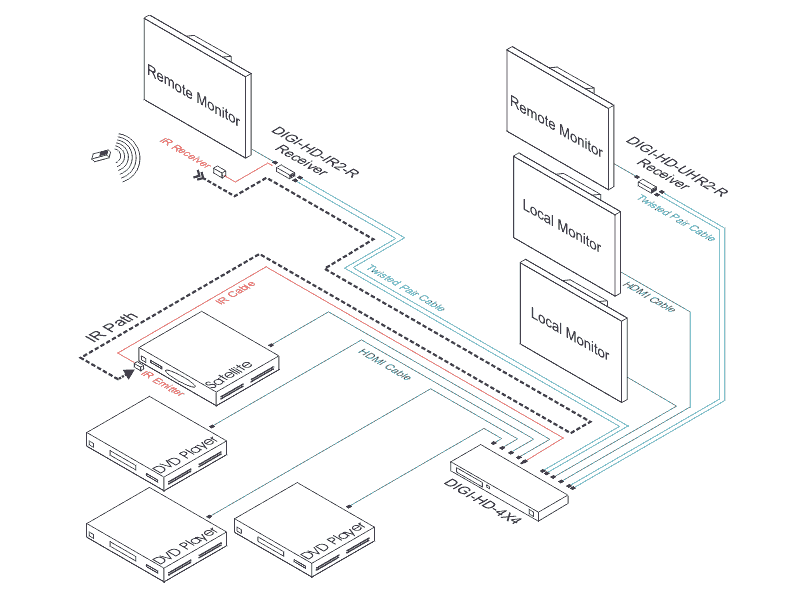

In this connection example, the audio/video from four sources are transmitted to an Intelix DIGI-HD-4X4 and routed to four monitors. The two local monitors are connected with an HDMI cable (not included) and the two remote monitors are connected with unshielded twisted pair cable (not included).

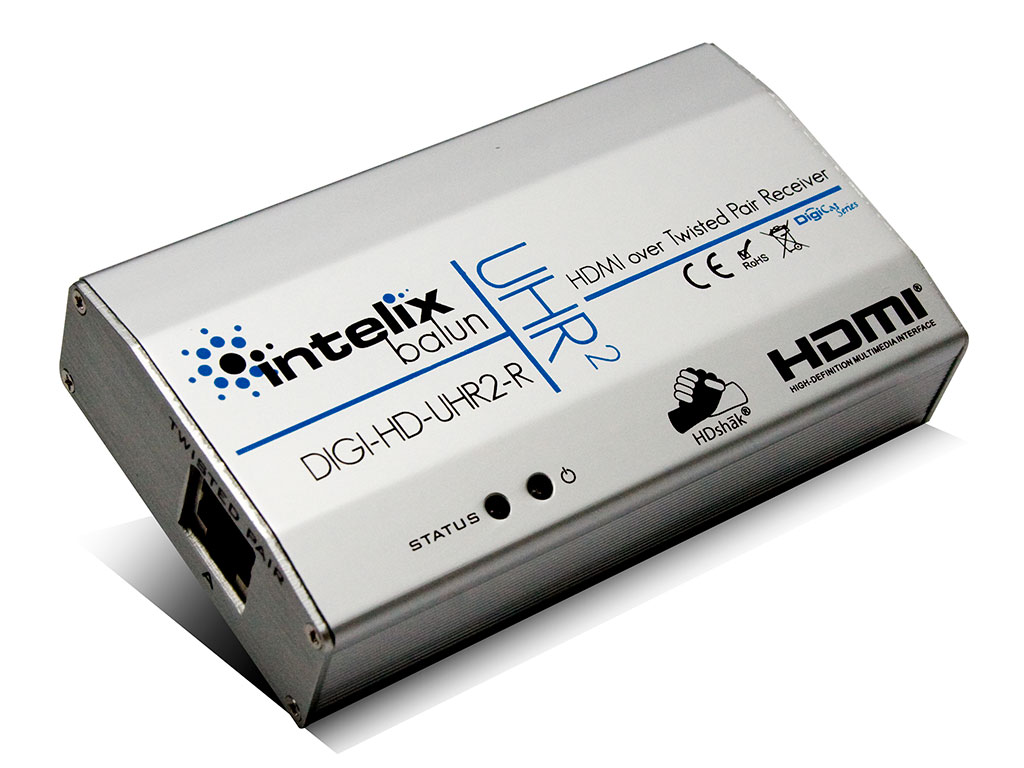

Here is the optional DIGI-HD-UHR2-R Twisted-Pair Receive Balun. Use up to four receivers per DIGI-HD-4X4 system. (Add to your cart below).
The optional DIGI-HD-IR3-R Cat-5 Receive Balun is similar to the model above except that it also includes bi-directional IR functionality.
Use up to four receivers per DIGI-HD-4X4 system.
(Add to your cart below.)
This is the spec sheet, in PDF format.
Here is the Installation Manual, in PDF format.
