Intelix DIGI-HD-1X8 HDMI and IR via Twisted Pair Distribution System

High-Definition 1:8 Distribution Amplifier with Cat-5 / Cat-6 Twisted-Pair Outputs

Intelix DIGI-HD-1X8 HDMI and IR via Twisted Pair Distribution System

Intelix DIGI-HD-1X8 HDMI and IR via Twisted Pair Distribution System

The Intelix DIGI-HD-1X8 HDMI Distribution Amplifier distributes one HDMI source to as many as eight remote locations, using twisted-pair cabling, such as Cat5 or Cat6.

Built-in HDshāk® technology provides dynamic HDMI, EDID/DDC and HDCP mode selection, guaranteeing performance and image quality. Plus, onboard HDMI amplification and buffering allows multiple receivers to be daisy-chained for greater distances.

If you take a look at the back panel, you will find a single HDMI input, seven pairs of twisted-pair output jacks, an HDMI output, and an IR return jack.  To distribute HDMI only, only one single Cat5e/6 cable is required.  If IR control from the remote zone(s) is also needed, two Cat 5e/6 cables are required.

When using Cat5e twisted-pair cable, the maximum range is 200 feet for 480i / 480p / 720p / 1080i signals and 100 feet for 1080p signals. If using shielded Cat6, the maximum range is extended to 300 feet for 480i / 480p / 720p / 1080i signals and 150 feet for 1080p signals.  For even more range, cascade up to five DIGI-HD-XR repeaters.

The DIGI-HD-1X8 is HDMI version 1.3 capable as well, making it a perfect choice for more advanced systems. Advanced chipsets and firmware promise superior HDCP compatibility and trouble-free operation.

Included in the box is the DIGI-HD-1X8 unit itself, power supply, (1) IR Emitter and (4) screw-on feet.

Twisted-pair receivers are sold separately (below), so you can get exactly the functionality you need.  Use any combination of receivers, up to a total of seven receivers. (add to your cart below):

  • DIGI-HD-UHR2-R Enclosed Receiver - HDMI (only), one twisted-pair cable required
  • DIGI-HD-UHR2-WP-R Wallplate Receiver - HDMI (only), one twisted-pair cable required
  • DIGI-HD-IR3-R Enclosed Receiver - HDMI and bi-directional IR, two twisted-pair cables required
  • DIGI-HD-IR3-WP-R Wallplate Receiver - HDMI and bi-directional IR, two twisted-pair cables required
  • DIGI-HD-XR Enclosed Receiver / Repeater - use to extend range and/or to add cascaded HDMI outputs.

As with virtually all systems that are based upon twisted-pair cable technology, the Intelix HDMI Twisted-pair Distribution System will work with virtually any twisted-pair cables, including Cat-5e and Cat-6, but range and bandwidth is directly related to both distance and cable quality, so to get the highest resolutions at the greatest distances, you will want high-quality, low-skew cables.  Check the installation manual for more information.  If you want the very best pre-terminated cables, please consider our VideoTwist cables.

Like most Intelix products, the DIGI-HD-1X8 comes with a two year limited warranty from the manufacturer.

Intelix's Description

DIGI-HD-1x8 Twisted Pair Distribution Amplifier

The Intelix DIGI-HD-1X8 seamlessly distributes one HDMI input to eight HDMI outputs. Built-in twisted pair extenders provide cabling distances up to 300 feet when used with compatible Intelix twisted pair receivers, such as the DIGI-HD-UHR2, DIGI-HD-IR3, and DIGI-HD-XR.

When distributing HDMI audio and video over twisted pair cabling, the DIGI-HD-1X8 requires a single Cat 5e or Cat 6 cable.

When distributing HDMI audio and video and IR over twisted pair cabling, the DIGI-HD-1X8 requires two Cat 5e or Cat 6 cables. IR is transmitted from the remote destination, through the compatible Intelix twisted pair receiver, over the twisted pair cable, and out of the IR OUT port on the DIGI-HD-1X8 to the source equipment.

The DIGI-HD-1X8 supports 3D, is HDCP compliant, and features proprietary Intelix HDshāk processing, including bandwidth limiting and custom EDID configuration and emulation.

Application:

  • Distributing one HDMI input to eight locations over twisted pair cable

Features & Benefits:

  • 1-Inputs x 8-Outputs
  • Wideband IR Support
  • Supports multi-channel digital audio
  • Supports 1080p video up to 150ft over Cat6 STP cable

Cross Reference

  • Atlona - AT-HD-19SS
Intelix HDshāk logo

HDshāk Processing

Intelix HDshāk technology delivers the highest level of EDID negotiation, ensuring proper source & destination handshaking over twisted pair every time.

[please click here for details]

DIGI-HD-1X8 Downloads

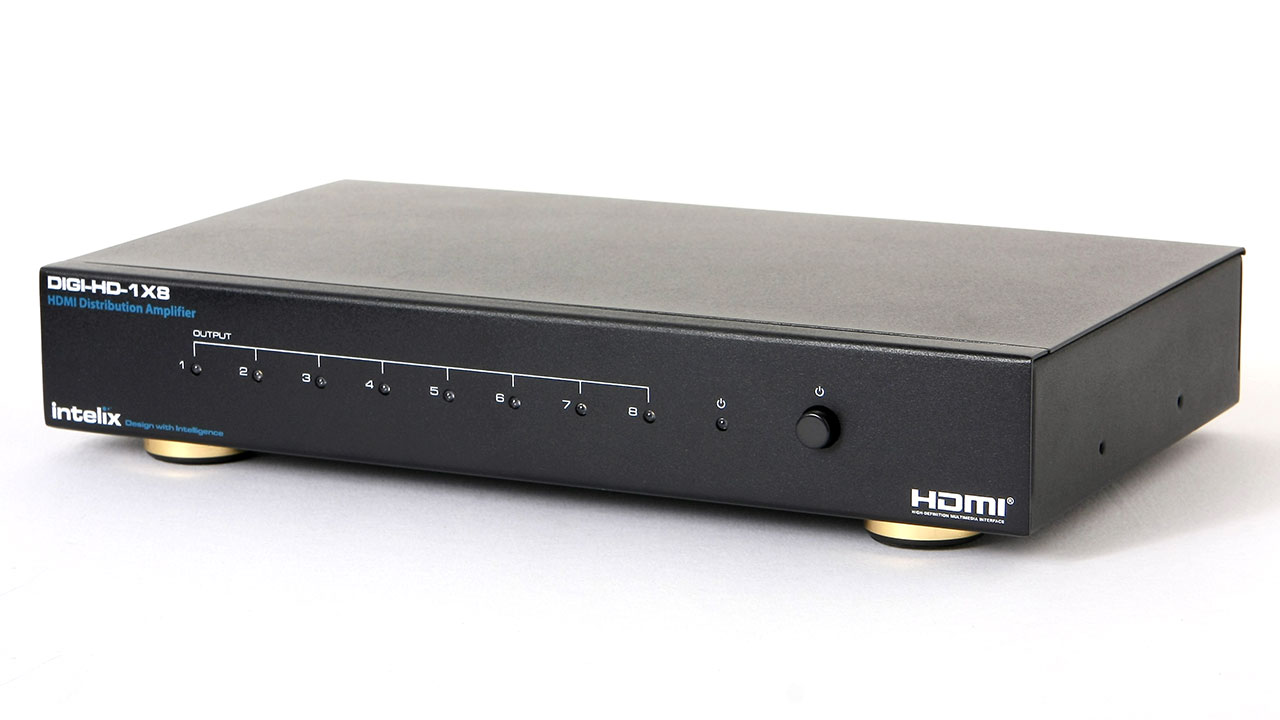

Intelix DIGI-HD-1X8 High-Definition Twisted Pair Matrix Distribution System - front panel

Here is another angle of the DIGI-HD-1X8 front panel.

Intelix DIGI-HD-1X8 High-Definition Twisted Pair Matrix Distribution System - front panel

Here is a closer look at the DIGI-HD-1X8 front panel.

Intelix DIGI-HD-1X8 High-Definition Twisted Pair Matrix Switcher - back panel

This photo is a view of the back panel.

Intelix DIGI-HD-1X8 High-Definition Twisted Pair Matrix Switcher - panel detail drawing

Here is the Installation Manual, in PDF format.

Intelix DIGI-HD-1X8 1X8 HDMI Cat 5 Matrix Distribution System, Connection Example

This is the spec sheet, in PDF format.

Intelix DIGI-HD-IR3-R Twisted-Pair HDMI and bi-directional IR Enclosed Receive Balun

Shown here is an optional enclosed receiver. Use DIGI-HD-UHR2-R for HDMI-only applications, DIGI-HD-IR3-R  (shown) when both HDMI and IR are needed, or DIGI-HD-XR to extend and/or cascade both HDMI and IR.  Add any combination of up to four receivers to your cart below.

Intelix DIGI-HD-IR3-WP-R Twisted-Pair HDMI and IR Receive Balun

Here is an optional wallplate receiver. Use DIGI-HD-UHR2-WP-R for HDMI-only applications, or DIGI-HD-IR3-WP-R (shown) when both HDMI and IR are needed.  Add any combination of up to seven receivers to your cart below.
