Intelix DIGI-HD-1X4 HDMI and IR via Twisted Pair Distribution System
High-Definition 1:4 Distribution Amplifier with Cat-5 / Cat-6 Twisted-Pair Outputs
Intelix DIGI-HD-1X4 HDMI and IR via Twisted Pair Distribution System
The Intelix DIGI-HD-1X4 HDMI Distribution Amplifier distributes one HDMI source to as many as four remote locations, using twisted-pair cabling, such as Cat5 or Cat6.
Built-in HDshāk® technology provides dynamic HDMI, EDID/DDC and HDCP mode selection, guaranteeing performance and image quality. Plus, onboard HDMI amplification and buffering allows multiple receivers to be daisy-chained for greater distances.
If you take a look at the back panel, you will find a single HDMI input, four pairs of twisted-pair output jacks, and an IR return jack. To distribute HDMI only, only one Cat5e/6 cable is required. If IR control from the remote zone(s) is also needed, two Cat 5e/6 cables are required.
When using Cat5e twisted-pair cable, the maximum range is 200 feet for 480i / 480p / 720p / 1080i signals and 100 feet for 1080p signals. If using shielded Cat6, the maximum range is extended to 300 feet for 480i / 480p / 720p / 1080i signals and 150 feet for 1080p signals. For even more range, cascade up to five DIGI-HD-XR repeaters.
The DIGI-HD-1X4 is HDMI version 1.3 capable as well, making it a perfect choice for more advanced systems. Advanced chipsets and firmware promise superior HDCP compatibility and trouble-free operation.
Included in the box is the DIGI-HD-1X4 unit itself, power supply, (1) IR Emitter and (4) screw-on feet.
Twisted-pair receivers are sold separately below, so you can get exactly the functionality you need. Use any combination of receivers, up to a total of four receivers (add to your cart below):
- DIGI-HD-UHR2-R Enclosed Receiver - HDMI (only), one twisted-pair cable required
- DIGI-HD-UHR2-WP-R Wallplate Receiver - HDMI (only), one twisted-pair cable required
- DIGI-HD-IR3-R Enclosed Receiver - HDMI and bi-directional IR, two twisted-pair cables required
- DIGI-HD-IR3-WP-R Wallplate Receiver - HDMI and bi-directional IR, two twisted-pair cables required
- DIGI-HD-XR Enclosed Receiver / Repeater - use to extend range and/or to add cascaded HDMI outputs.
As with virtually all systems that are based upon twisted-pair cable technology, the Intelix HDMI Twisted-pair Distribution System will work with virtually any twisted-pair cables, including Cat-5e and Cat-6, but range and bandwidth is directly related to both distance and cable quality, so to get the highest resolutions at the greatest distances, you will want high-quality, low-skew cables. Check the installation manual for more information. If you want the very best pre-terminated Cat6 UTP cables, please consider our VideoTwist cables.
Like most Intelix products, the DIGI-HD-1X4 comes with a two year limited warranty from the manufacturer.
Intelix's Description
DIGI-HD-1X4 Twisted Pair Distribution Amplifier
The Intelix DIGI-HD-1X4 seamlessly distributes one HDMI input to four twisted pair outputs. Built-in twisted pair extenders provide cabling distances up to 300 feet when used with compatible Intelix twisted pair receivers, such as the DIGI-HD-UHR2-R, DIGI-HD-IR3-R, and DIGI-HD-XR.
When distributing HDMI audio and video over twisted pair cabling, the DIGI-HD-1X4 requires a single Cat 5e or Cat 6 cable.
When distributing HDMI audio and video and IR over twisted pair cabling, the DIGI-HD-1X4 requires two Cat 5e or Cat 6 cables. IR is transmitted from the display location, through the compatible Intelix twisted pair receiver, over the twisted pair cable, and out of the IR OUT port on the DIGI-HD-1X4 to the source equipment.
The DIGI-HD-1X4 supports 3D, is HDCP compliant, and features proprietary Intelix HDshāk processing, including bandwidth limiting and custom EDID configuration and emulation.
Application:
- Distributing one HDMI input to four locations over twisted pair cable
Features & Benefits:
- 1-Inputs x 4-Outputs
- Wideband IR Support
- Supports multi-channel digital audio
- Supports 1080p video up to 150ft over Cat6 STP cable
Cross Reference
- Atlona AT-HD-V14ss
HDshāk Processing
Intelix HDshāk technology delivers the highest level of EDID negotiation, ensuring proper source & destination handshaking over twisted pair every time.
[please click here for details]
DIGI-HD-1X4 Downloads
Here the DIGI-HD-1X4 is shown from the front-right.

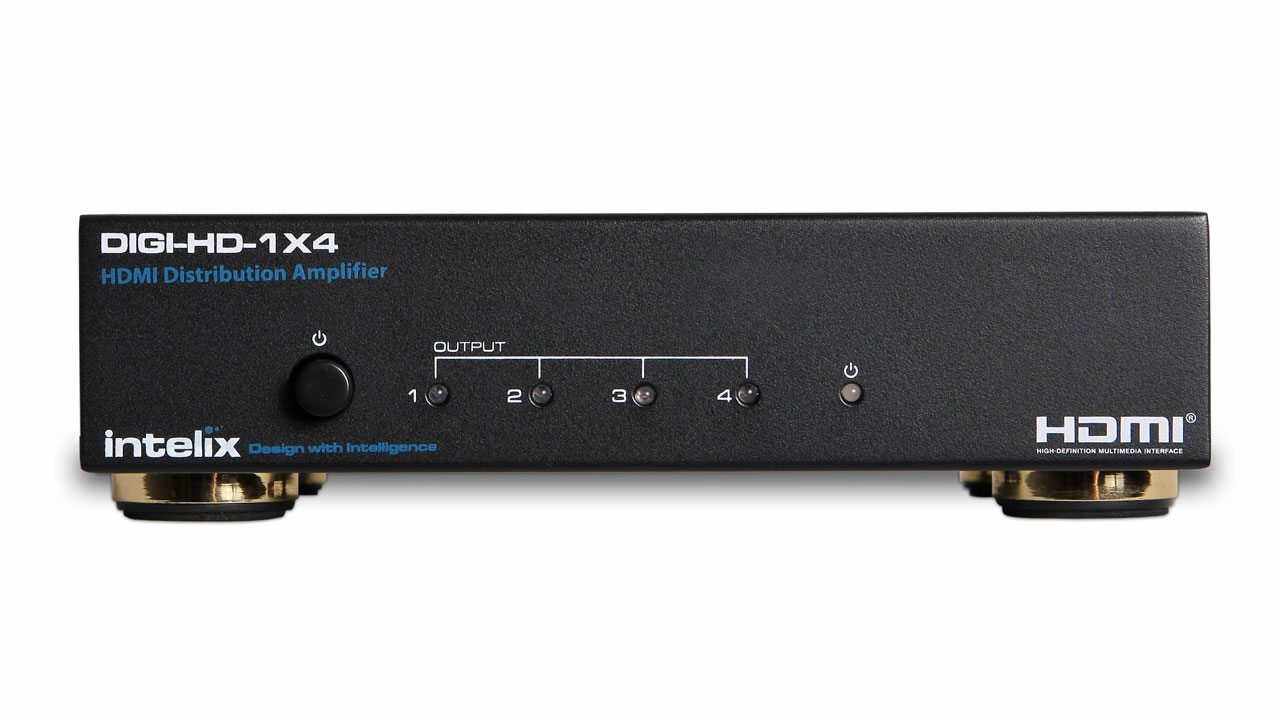

Here is a closer look at the DIGI-HD-1X4 front panel.
This photo shows the back.
Here is a closer look at the back panel.
Here is the Installation Manual, in PDF format.
This is the spec sheet, in PDF format.
Shown here is an optional enclosed receiver. Use DIGI-HD-UHR2-R for HDMI-only applications, DIGI-HD-IR3-R (shown) when both HDMI and IR are needed, or DIGI-HD-XR to extend and/or cascade both HDMI and IR. Add any combination of up to four receivers to your cart below.
Here is an optional wallplate receiver. Use DIGI-HD-UHR2-WP-R for HDMI-only applications, or DIGI-HD-IR3-WP-R (shown) when both HDMI and IR are needed. Add any combination of up to four receivers to your cart below.
