Audio Authority ADX-1616
16x16 Audio Matrix Switcher
Audio Authority ADX-1616 Audio Matrix Switcher
The ADX-1616 is an ultra-controllable 16 x 16 Audio Matrix, Switcher that seamlessly integrates with third-party control systems, such as Control4, URC, RTI and more.
Control options include Ethernet, RS-232 Serial, and IR, as well as front panel capacitive touch panel and multi-function rotating knob.
The ADX-1616 offers sixteen audio source inputs and sixteen audio zone outputs. 10-band EQ, bass/treble and balance are customizable per zone and the system offers up to 10 source/zone combination presets.
PC-based software simplifies setup and all settings can be backed up to a USB flash drive. Use with multi-zone amplifiers such as Audio Authority's own SF-16M.
It's great to see Audio Authority returning to their audio-centric roots with this exciting audio matrix switcher. With products of unknown heritage and quality coming from all over the world, companies like Audio Authority are among the cherished few, actually designing and manufacturing some of the finest products in the world, right here in the USA, and we are proud to be able to offer their products. Like most Audio Authority products, the ADX-1616 comes with a one year limited warranty from the manufacturer.
Audio Authority's Description
16x16 Audio Matrix Switcher
Model ADX-1616
- 16x16 audio matrix
- Per zone volume control, EQ, tone, and balance controls
- Ethernet, RS-232, IR, and front panel controls
- Compatible with Control4, URC, RTI and more
- Rack mountable with included 2U rack-mount ears
- Designed and built in Lexington, Kentucky, USA
Overview
The ADX-1616 is the cornerstone of a quality distributed audio system. Loaded with features like onboard volume control, a 10-band equalizer, tone and balance controls, the ADX-1616 mates up with any zone amplifier and control system to deliver high fidelity audio to up to 16 independent stereo zones.
- Supports sixteen sources and sixteen zones (Model ADX-0808 supports 8 sources and 8 zones)
- Ethernet, RS-232, IR, and front panel control options
- Digital volume control, 10-band equalizer, tone, and balance controls for each output zone
- Single-cable connection to soon coming Audio Authority amplifiers
- Rack mountable with included 2U rack-mount ears
- Manufactured in the USA
Features
Key Features
- 16 inputs, 16 outputs of stereo analog audio (RCA connectors)
- Front panel controls with LCD readout
- Digital volume control (0 to -80dB attenuation)
- Per-zone tone and balance controls
- 5-band equalizer (adjustable per zone)
Inputs/Outputs
- Stereo analog audio - 16/16 (RCA)
Control Interfaces
- Ethernet
- RS-232 Serial
- Front panel IR receiver
- Rear panel IR jack (3.5 mm jack or 3-pin header)
- Front panel capacitive touch buttons and knob with LCD screen
Specifications
Audio Parameters
- Input Impedance: 100K
- Min Load Impedance: 10K
- Multi-channel Digital: No
- Frequency Response: 10-25kHz
- S/N Ratio: 82dB
- THD+Noise: 0.02%
- Crosstalk: -85dB
Miscellaneous
- Connector Types (Input): RCA
- Connector Types (Output): RCA
- Product Dimensions:3.5 x 16.6 x 8.6 (H-W-D, inches)
- Net Product Weight: 11.2
- Shipping Weight: 12.7
- Agency Approvals: FCC
- DC Input Connector: 5.5 x 2.1mm
- DC Input Voltage/Polarity: 18V center positive
- Max DC Input Current: 600mA/1.1A
- Heat Output:38/68 BTU/hr
In the Box
- Power Supply: Model 803-170
- Rack Mount Ears: Model 1192A
- User Manual
Downloads
- Product Focus Sheet: ADX Series Audio Matrix Switchers
- User Manual: ADX Series Audio Matrix Switchers
Software
- Configuration Utility: (coming soon)
IR Codes

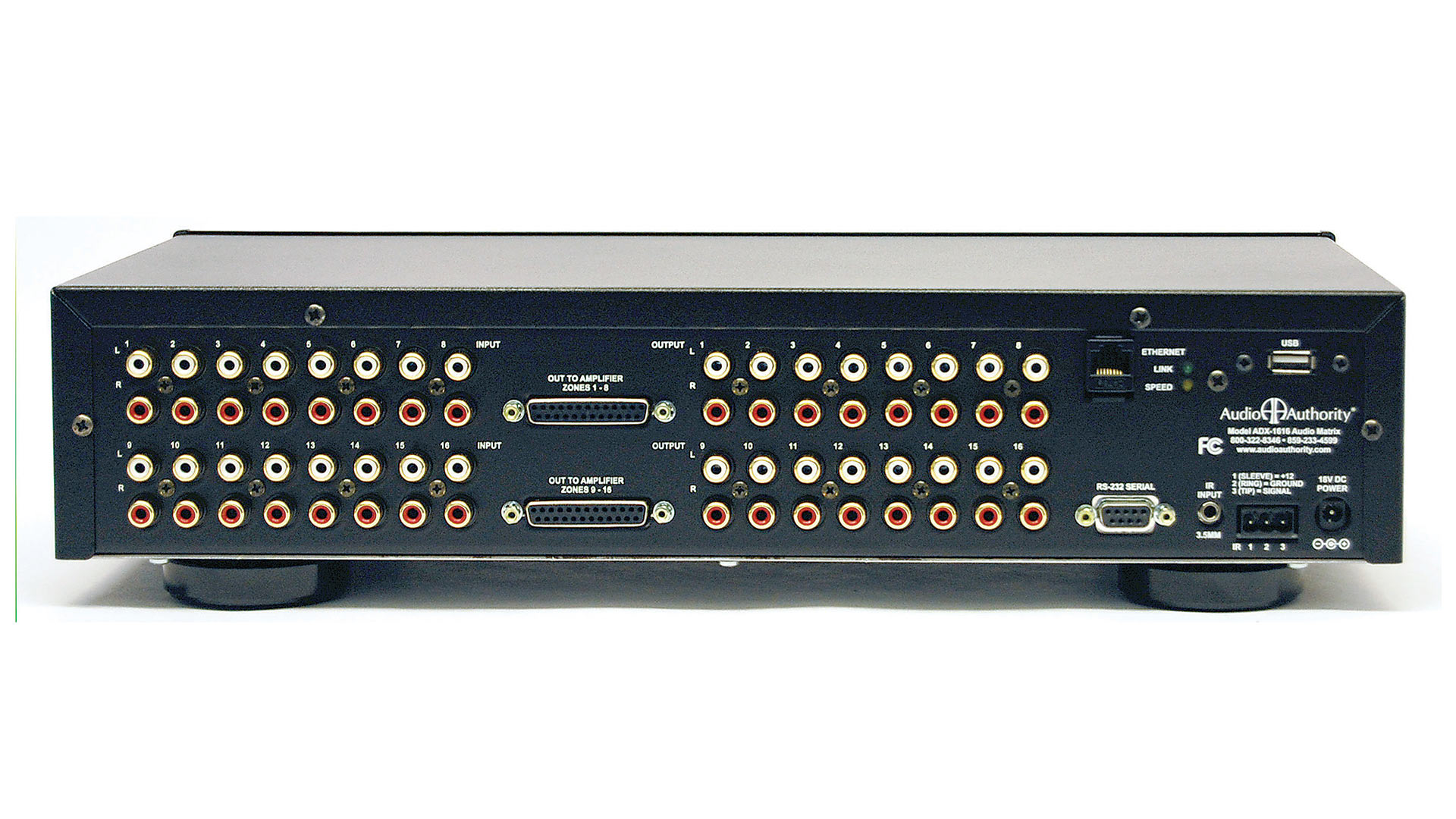

Shown here is the back panel of the ADX-1616.
Here is the ADX-Series Focus Sheet. Click to download in PDF format.
This is the ADX-Series Installation and Operation Manual. Click to download in PDF format.
