Audio Authority 2214
4-Output HD Video/Audio Local Zone Card for HLX
Audio Authority 2214 4-Output HD Video/Audio Local Zone Card for HLX
Use Audio Authority 2214
4-Output HD Video/Audio Local Zone Cards to expand the capacity of an HLX Matrix Distribution System.
This card provides component video, coaxial or optical digital audio, analog stereo audio and IR control for up to four local A/V zones, such as multi-screen theaters, game rooms, or for any setup where the zones are near the rack. For longer runs, use 2248 Cat 5 A/V zone cards.
Please see the HLX System page for more information.
Like most Audio Authority products, the 2214 comes with a one year limited warranty from the manufacturer.
Audio Authority's Description
HD Zone Card for HLX Modular Matrix
Model 2214
- 4 outputs per 2214 card
- Component video, digital audio, analog audio
- IR jack for control signals from the zone location
Overview
Component Video Direct to TVs
The 2214 adds four AV zones to an HLX matrix configuration. Useful for local outputs where the zone equipment is near the rack. Use 2248 Cat 5 zone cards for zones requiring cable lengths over 50 feet.
Audio to Remote TV or Receiver
Analog audio outputs provide easy connection to TV audio, or use digital audio to a surround receiver.
How to Order
Order the 2214 as part of a custom HLX Modular Matrix. Call your Audio Authority Account Manager with questions or to order your custom HLX configuration by telephone
[Editor's Note: the 2214 may also be ordered separately for upgrading existing HLX systems - just Add to Cart below or contact Cable Solutions for assistance]
Features
- Component Video signals delivered to zones via coaxial cable
- Four audio/video outputs
- 3.5mm IR jack for control signals from a zone IR receiver
Specifications
Video Parameters
- Video Formats: 480i/p, 576i/p, 720p, 1080i/p
- Input/Output Impedance: 75 ohms
- Input Ground Isolation: No
- Gain: 1
- Gain Accuracy: 2%
- 3dB Bandwidth: 150MHz
- Input Coupling: AC
- S/N Ratio: 61dB
- Max Gain/Equalization: 1.00 gain
Audio Parameters
- Input Impedance: 75 ohms/50K ohms
- Min Load Impedance: 75 ohms/10K ohms
- Multi-channel Digital: Yes
- Frequency Response: 10-50KHz
- S/N Ratio: 72dB
- THD+Noise: 0.03%
- Crosstalk: 75dB
Miscellaneous
- Connector Types (Input): RCA (YPbPr, analog audio, digital coaxial audio), Toslink (digital optical)
- Dimensions (HxWxD): TBD
- Agency Approvals: ETL, FCC
- DC Input Connector: 5.5 x 2.1mm
- DC Input Voltage/Polarity: 18V/Center Positive
- Max DC Input Current: 1.9AmA (1.0A with no Cat 5 Receivers)
- Heat Output: 62 BTU/hr
In the Box
- HLX zone output card
Downloads
Documents
- User Manual: HLX Installation Manual (.pdf)

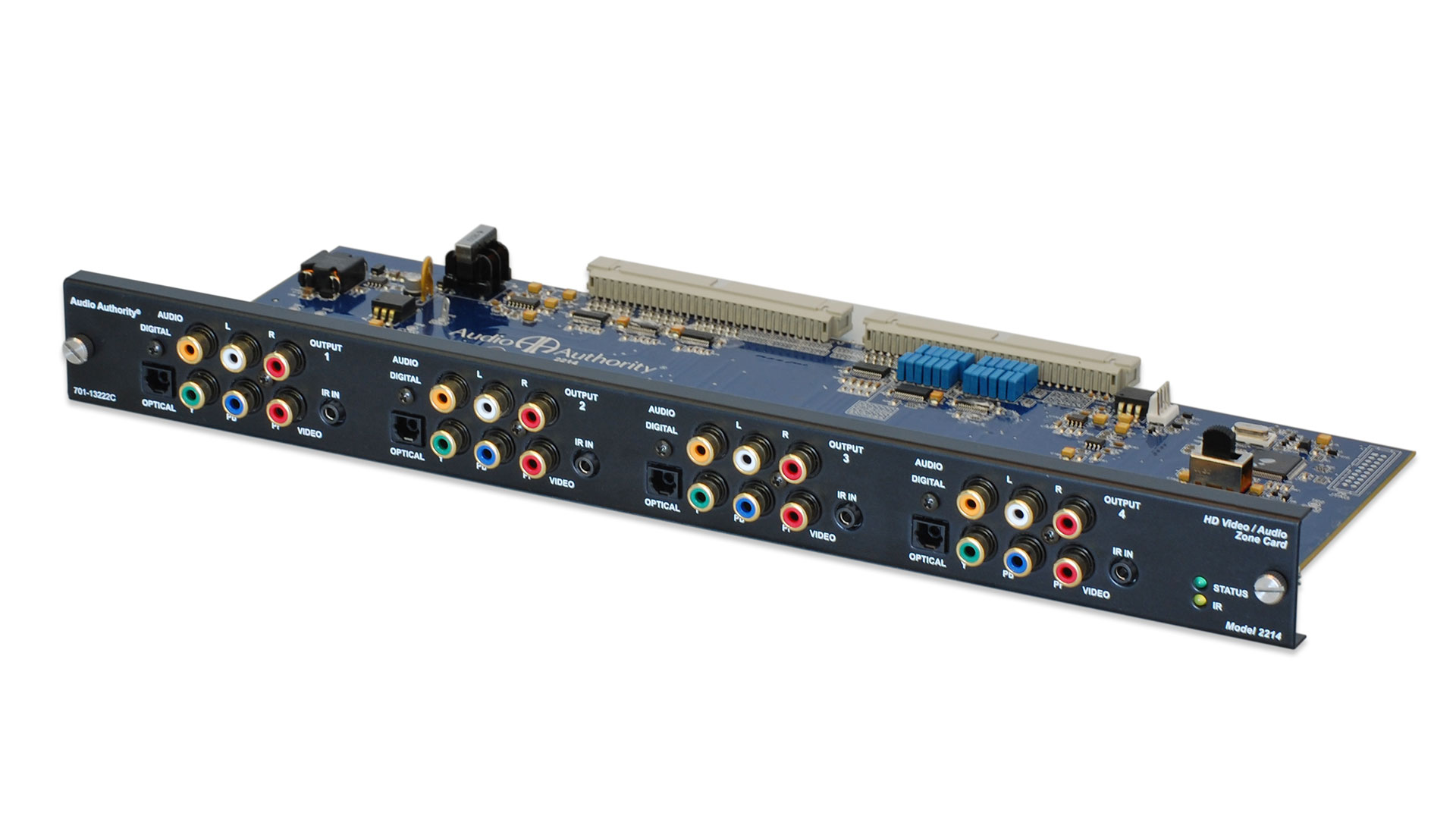

Shown here is another view of the 2214 four four output HD Video/Audio Local Zone Card.

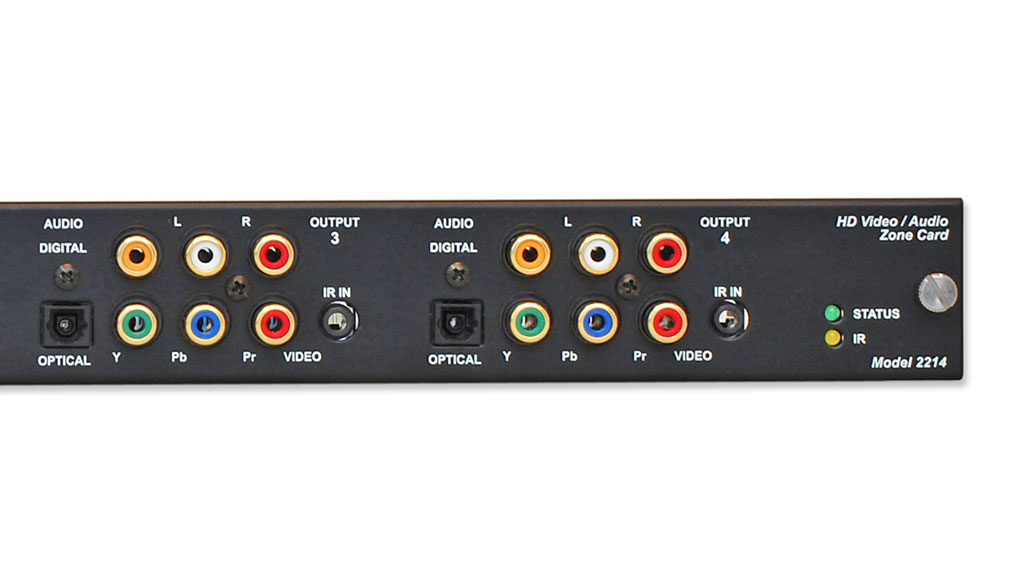

This close-up view shows the right side of the 2214 card's output panel in greater detail.
This focus sheet offers a general overview of the HLX System. Click to download in PDF format.
Here is the HLX installation manual. Click to download in PDF format.
