Jensen Transformers JT-MB-CPCA Microphone Input Transformer
1:1 Windings Ratio, P C Board Mount, for Ultra-low Noise Amplifiers
Jensen Transformers JT-MB-CPCA 1:1 Microphone Input Transformer
The Jensen Transformers JT-MB-CPCA 1:1 Microphone Input Transformer features a dual Faraday shield for very high CMMR of 122 dB at 60 Hz, as well as a 30 dB magnetic shield. The wire leads and included angle bracket mounting hardware make it perfect for DIY projects. Also available in a P C B mounting style as JT-MB-CA.
Like all Jensen microphone input transformers, the JT-MB-CPCA offers legendary sonic transparency. Internal Faraday shielding virtually eliminates hum, buzz, and RF interference, while MuMETAL® magnetic shielding cans reduce hum caused by nearby magnetic fields. Optimized noise performance is ensured by matching the step-up turns ratio to you input stage design. Extended low-frequency and Bessel-tailored high-frequency response results in the ultra-low time-domain distortion (DLP) that only Jensen offers. Insertion loss is minimal and adding phantom power is simple.
Here are some specs:
- Impedance ratio: 150:150
- Turns ratio: 1:1
- Maximum 20 Hz input: +2dBu
- THD @ 20 Hz: 0.045 %
- Frequency Response: 20Hz / 20 KHz , -0.10 dB / -0.04 dB
This transformer is also available with wire leads as JT-MB-CA.
The JT-MB-CPCA is backed by the manufacturer's comprehensive one-year warranty, and has a remarkable 20-year warranty on the transformer device itself.
Jensen Transformers' Description
Jensen Transformers JT-MB-CPCA
Microphone Input Transformer
1:1 FOR ULTRA-LOW NOISE AMPLIFIERS
- Ideal retrofit to solve problems with transformerless preamps
- Dual Faraday shields provide very high CMRR: 122 dB at 60 Hz
- Eliminates complex circuitry required to block 'phantom' power
- Excellent frequency response and time domain performance
- Low transformer related Noise Figure
This transformer is designed to couple a nominal 150 Ω mic to the 3 kS input impedance typical of 'transformerless' preamps. Both windings are fully balanced and either may be reversed to invert polarity. A 30 dB magnetic shield package is standard. Not recommended for mic 'splitter' applications (use JT-MB-C).

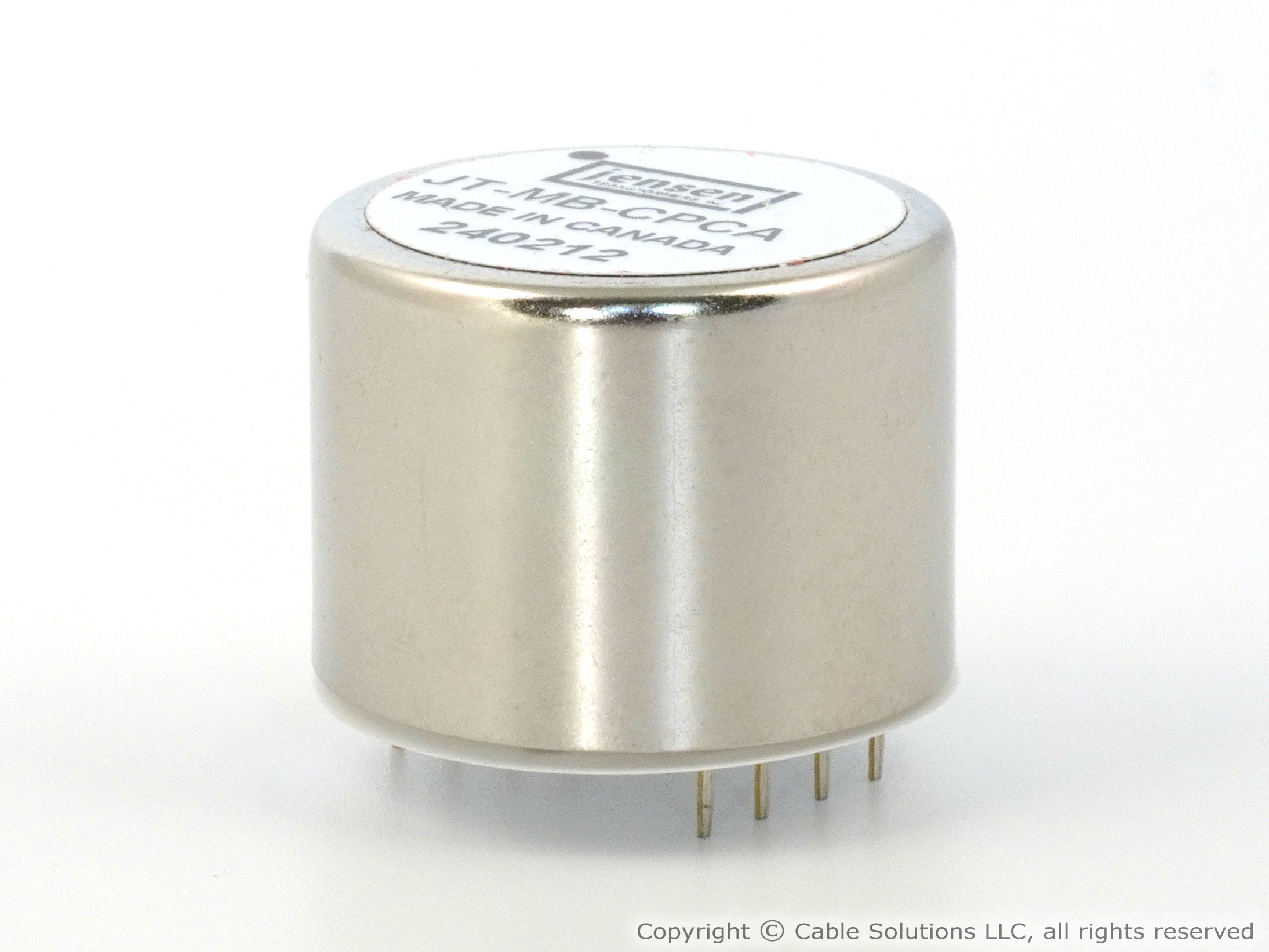

Here is the right-hand perspective
The PCB pins and Valox insulator can be seen in this bottom perspective view
We include a printed copy of the datasheet along with the JT-MB-CPCA transformer itself
The JT-MB-CPCA comes packaged in a small box as shown here.
Here is another angle on the product bax
Here is the JT-MB-CPCA spec sheet. PDF format.
