Intelix DIGI-HDX-S HDMI via HDBaseT Transmitter
4K, 2K, 1080p HDMI, Ethernet, IR, and RS-232, over Single Twisted Pair
Intelix DIGI-HDX-S HDBaseT HDMI Extender Transmitter - HDMI, IR, RS-232, and Ethernet over Single Twisted Pair
The Intelix DIGI-HDX-S HDMI over HDBaseT Transmitter accommodates HDMI, bi-directional IR, bi-directional RS-232 and Ethernet up to 90 meters (296 feet) over a single twisted-pair cable such as Cat-5 or Cat-6.
Incorporating HDBaseT technology, the DIGI-HDX-S handles advanced HDMI video and audio formats, including (but not limited to) 1080p, 4K, 2K, 2D, 3D, 120Hz, 240Hz, along with all of the lossless audio formats.
The DIGI-HDX-S extender Transmitter supports A/V, PoH (Power over HDBaseT) and control when used with these Intelix HDBaseT receivers:
Supports A/V and PoH when used with these Intelix HDBaseT receivers:
- FLX-BI4 (installed in FLX-88, FLX-1616 or, FLX-3232 Matrix System)
Supports A/V and PoH when used with with these Intelix HDBaseT receivers:
Also compatible with any product that fully complies with the HDBaseT specification.
Built-in surge protection ensures robust durability and diagnostic LEDs ensure hassle-free installations. The DIGI-HDX-S comes with mounting brackets w/screws and 3-conductor plug for RS-232. External IR Transmitters and, external IR emitters are available as upgrades. (add to cart below)
The system can be powered from either end, so if you are using this Transmitter with a transmitter, that can supply power over HDBaseT (PoH), you will not need a separate power supply. If not, you will need the optional power supply. (add to cart below)
This Transmitter is also available as part of a kit.
As with virtually all systems that are based upon twisted-pair cable technology, the Intelix DIGI-HDX-S HDBaseT HDMI Extender will work with virtually any twisted-pair cables, including Cat-5e and Cat-6, but range and bandwidth is directly related to both distance and cable quality, so to get the highest resolutions at the greatest distances, you will want high-quality, low-skew cables. If you want the very best pre-terminated Cat-6 cables, please consider our VideoTwist cables.
Like most Intelix products, the DIGI-HDX-S comes with a two year limited warranty from the manufacturer.
Intelix's Description
DIGI-HDX-S
The Intelix DIGI-HDX-S extends HDMI over a single cable by incorporating HDBaseT technology. The DIGI-HDX-S supports 1080p, full 3D or 4k x 2k video signals up to 90 meters (295 feet) including multichannel audio. Built-in surge protection and diagnostic LEDs ensure hassle-free and robust installations. Key features of the new extender series include local HDMI output on the transmitter, power over Ethernet (PoE), bidirectional IR, bidirectional RS-232, and Ethernet pass-through with a 2-port network switch on the Transmitter.
Flexible power design allows the DIGI-HDX series extenders to be powered at either the TX or RX end, and only one power supply is required. The power supply (PS-24D-25) is sold separately. The bidirectional wideband IR, bidirectional RS-232, and Ethernet pass-through capabilities make the DIGI-HDX compatible with most control systems. The IR emitter (DIGIB-EMT) and IR Transmitter (DIGIB-EYE) are sold separately. The two-port network switch on the DIGI-HDX-S allows a second device to share the 100BaseT Ethernet pass-through connection without adding additional hardware to the installation.
The DIGI-HDX series extenders are compatible with all Intelix HDBaseT product offerings and any product that meets the HDBaseT specifications.
Features:
- HDMI transmission up to 90m (296 ft)
- Two-port Ethernet switch; locking power connector
- Supports 3D, 4K, and audio formats up to 7.1 audio
- Supports HDBaseT, CEC specifications; HDMI/HDCP compliant
- Built-in surge protection, diagnostic LEDs
- Bidirectional Wideband IR, RS-232 and 100BaseT Ethernet pass-through
- PoE (Power over Ethernet) - power from TX (PS not included) when used with DIGI-HDX-S
Applications:
- Extension of HDMI and control signals up to 90 meters
- Limited access to power for extenders on both ends
- Ideal for digital signage, home theater, commercial video systems
Documentation
- Technical Specifications (PDF)
- Installation Guide (PDF)

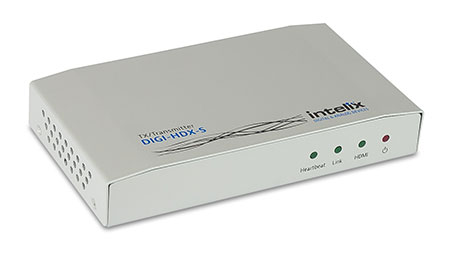

This photo shows the front right side of the Transmitter Unit.
Here is a look at the back of the DIGI-HDX-S Transmitter.

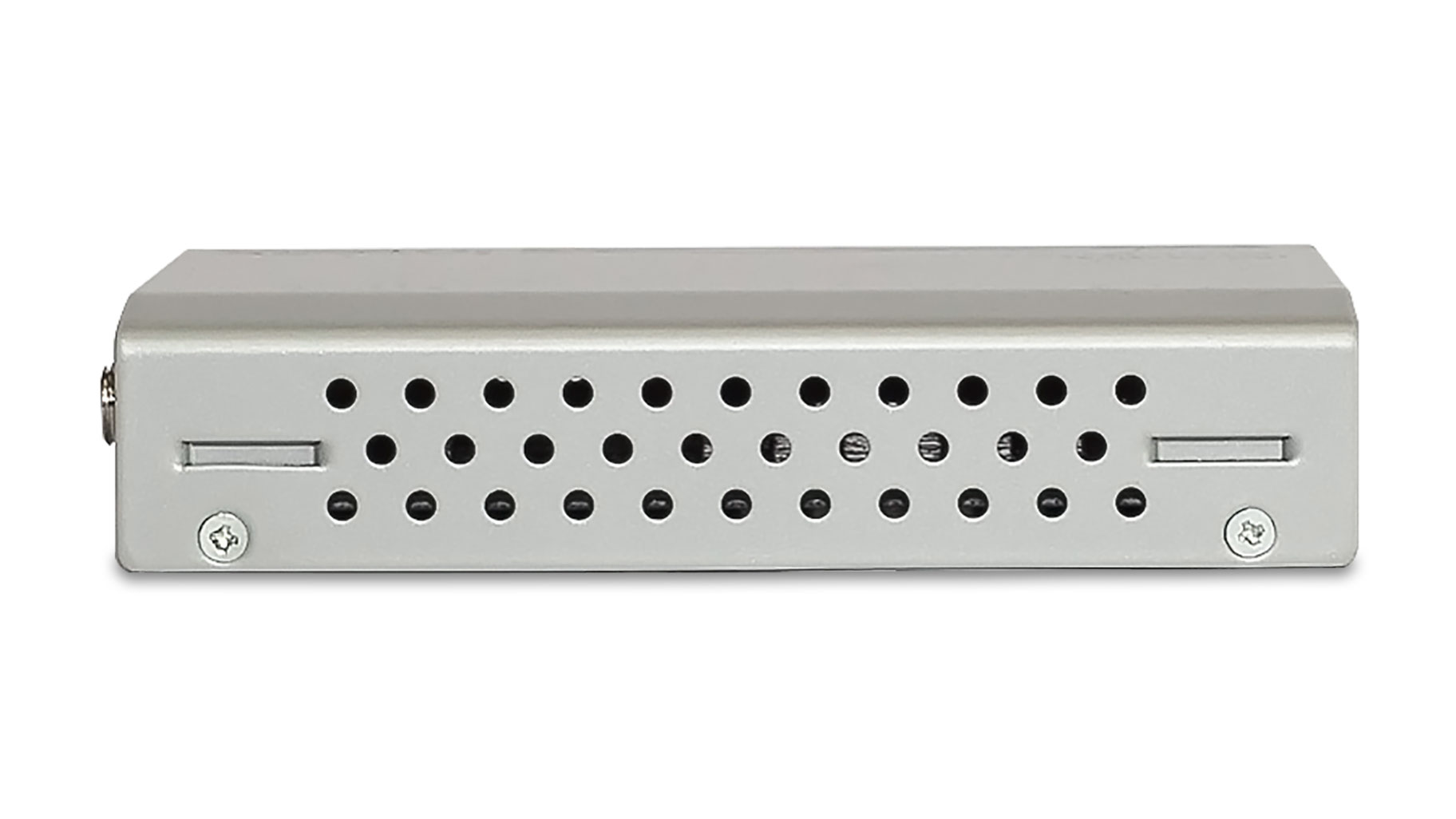

This photo shows the left side of the Receive unit.
The DIGI-HDX-S back panel is shown here is greater detail.
This is the spec sheet, in PDF format.
Here is the Installation Guide, in PDF format.
