Gefen EXT-AUD-1000 Stereo Audio Extender
Extends audio up to 300 meters (1000 feet) via Twisted-Pair

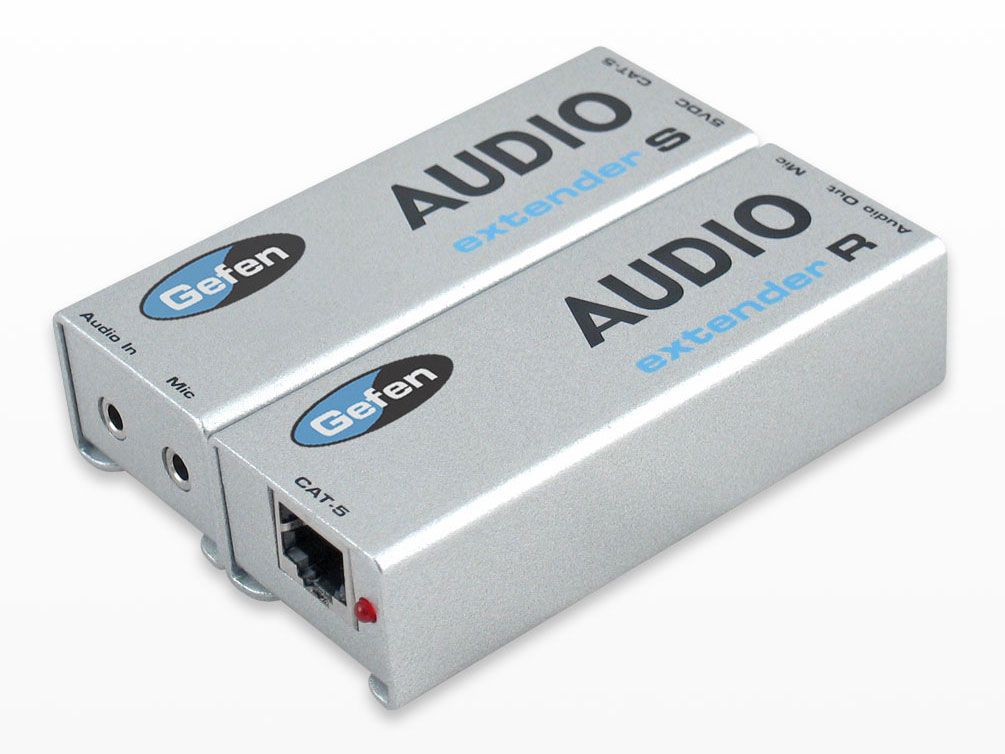

Gefen EXT-AUD-1000 Audio Extender
The Gefen EXT-AUD-1000 Audio Extender transmits analog stereo audio over a single twisted-pair cable, such as Cat5. The Audio Extender also handles stereo microphone-level audio.
This is a simple and cost-effective way to send both line-level and/or microphone-level audio over long distances. The design lends itself to computer extension applications, but the possibilities are almost endless.
Warranty
Cable Solutions backs the EXT-AUD-1000 with a one year limited warranty against defects in materials and workmanship. This warranty is separate from any warranty that may be provided by the manufacturer, so you must contact Cable Solutions for all warranty-related issues.
Gefen's Description
Extends your audio up to 1000 feet (300 meters) from your computer over one CAT-5 cable.
How it works
The Audio Extender sender unit sits next to your audio source. Stereo cables supplied with the Audio Extender package connects your audio source to the sender. The receiver unit connects to your speakers or audio output device. One CAT-5 cable connects the sender and the receiver to each other - up to 1000 feet away.
Package Includes:
- Audio Extender S Sender Unit
- Audio Extender R Receive Unit
- 6 foot audio cable
- 5V external power supply
Features:
- Extends any unbalanced analog audio device up to 1000 feet (300 meters) from the source
- One CAT-5e cable used for extension
- Bidirectional transmission for speaker and mic
Specifications:
- Sample Rate: 5 kHz (min) - 48 kHz (max)
- Frequency Response: 20Hz - 20kHz
- Audio Connectors: mini-phone Stereo 3.5mm
- Link Connector: RJ-45 Shielded
- Power Supply: 5V DC
- Power Consumption: 5 watts (max)
- Dimensions: 1"H x 1"W x 4"D
- Shipping Weight: 3 lbs.

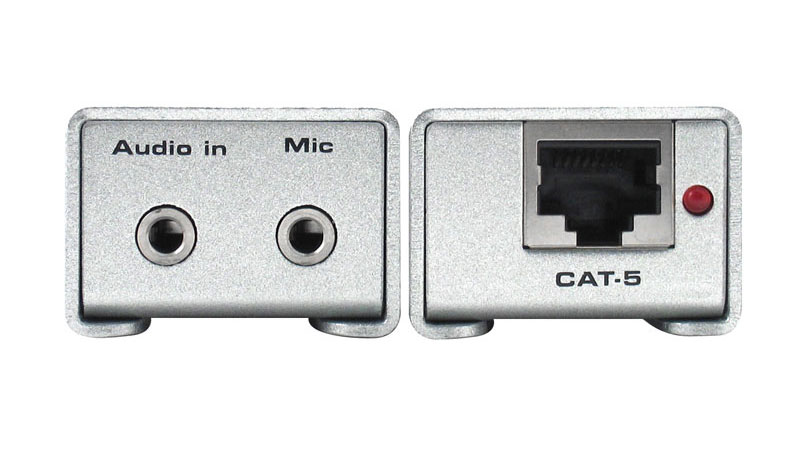

Here is a good look at the left side of the devices. In this picture the sender unit is on the left and the receiver unit is on the right. As you can see, the sending unit is equipped with two 3.5mm stereo mini-phone jacks - one for line-level audio input and the other for microphone-level audio output. The receiver unit has a CAT5 connector with a link status LED.

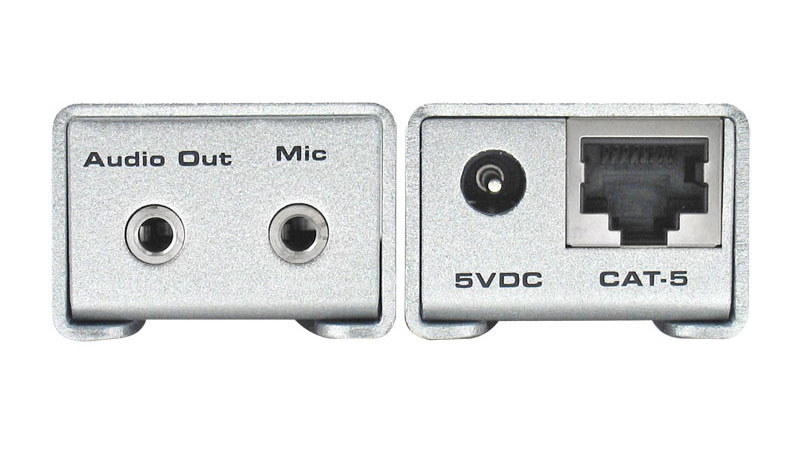

This photo shows the right side of the devices. Here, the receiver unit is on the left and the sender unit is on the right. The receiver unit has line-level output and microphone level audio input connectors and the sending unit has a power connector and CAT5 connector.

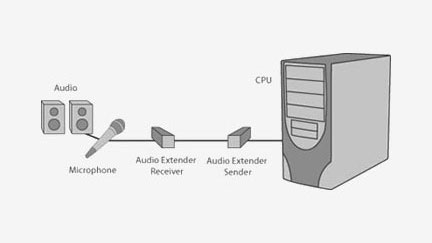

Here is a connection example.
This is the product flyer - click to download in PDF format.
This is the User Manual - click to download in PDF format.
