Audio Authority AVM-562E
AVAtrix 2.0 6x7 HD Cat 5 Matrix Distribution System
Audio Authority AVM-562E AVAtrix 6x6 HD Cat 5 Matrix Distribution System
This is Audio Authority's AVAtrix 2.0 Cat 5 HD Matrix, AVM-562 Whole-House Routing System w/ Component Video. The AVM-562 is essentially identical to the AVX-562 - the model number is the only change.
If you consider elegance of design and functionally, you will be hard-pressed to find any other system that puts such a rich feature set and operational flexibility into a single well-integrated modular system. This second-generation flagship product has so many features that it may be hard to take it all in - it may help to read this AVM-562 focus document to get an idea of how the various modules work together.
Audio Authority has once again combined their highly-respected electronic switching technology with a CAT-5 distribution system to create an amazingly flexible routing system. The system makes it simple to distribute high-definition component video at up to 1080p, as well as digital audio, stereo audio, and IR. Any of the monitors can select between any of the six sources! Watch and listen to the same source at all remote locations, or watch/listen to any mix of the six sources at each remote location.
The standard AVM-562 system comes with a 4-port bus cable, which can accommodate system expansion to as many as 18 ports. If you plan to expand the system beyond 18 ports, we also offer the AVM-562E, which comes standard with a 7-port bus cable The AVM-562E is among the options shown below.
The system provides an IR pathway from each remote wallplate, making it possible to control the system from multiple locations. In addition, there is also support for a local monitor/audio.
The CAT-5 driver system can transmit video and audio up to 1000 feet without any frequency roll-off or signal attenuation, so colors and details are faithfully preserved for your maximum enjoyment.
Zone receivers for the AVM-562 are sold separately. This Cat 5 Receiver Comparison may be helpful in selecting from the five different configurations of wallplates and enclosed receivers that are available. Once you decide which receivers you prefer, you can add them to your system configuration below.
Click here to see a comparison of all Audio Authority Component Video over Cat-5 Distribution Systems.
Like most Audio Authority products, the AVM-562 comes with a one year limited warranty from the manufacturer.
Audio Authority's Description
6x6+1 AVAtrix™ HD Cat 5 Matrix
Model AVM-562
Overview
The AVAtrix™ provides component video connection of sources, and distributes HD signals up to 1,000 feet away to convenient wallplates mounted wherever televisions are to be located. Supporting component video up to 1080p, along with analog stereo audio, digital coaxial audio, and digital optical audio, the AVAtrix was the industry's first Cat 5 matrix, and still leads the category with a combination of performance, value, and unique features.
- 6-in, 7-out matrix
- System is expandable up to 36 remote Cat 5 Receiver outputs (order AVM-562E for 19-36 output systems)
- Supports video up to 1080p
- Extends video and audio up to 1,000 feet over Cat 5e/6 cable
- Rack mountable with included 2U rack-mount ears.
- Manufactured in the USA
Important Configuration Note: This model has capacity for two expanders, such as 1173BK. For larger capacity requirements, use Model AVM-562E. [Select as an option below]
Features
Key Features
- Distributes video and audio over two Cat 5e/6 cables (or single Cat 5 options)
[see all five zone receiver options] - Expandable up to 36 remote Cat 5e/6 outputs
- Cross-Converts digital audio - digital coax and optical sources are converted and output as both formats simultaneously
- Capacitive touch front panel - no physical buttons to wear out
- Integrates seamlessly with third-party control systems from Control4, URC, RTI, and more
- Three Cat 5 Receiver options to match any installation scenario (also see single Cat 5 options)
Inputs/Outputs
- Component video (YPbPr) - 6/7 (6 x Cat 5e/6, 1 x RCA)
- Digital audio (coaxial and optical) - 6/7 (6 x Cat 5e/6, 1 x RCA)
- Analog stereo audio (L/R) - 6/7 (6 x Cat 5e/6, 1 x RCA)
Control Interfaces
- RS-232 Serial
- Front panel IR receiver
- Rear panel IR jack (3.5 mm jack)
- IR input on each zone receiver (3.5 mm jack)
- Front panel capacitive touch buttons and knob
IR Routing
The AVAtrix includes an IR routing system that is unique in the industry. The new AVM-562 offers individual IR outputs for each source. This routing system allows IR signals returned from a wallplate to control only the source currently routed to that zone. This design is vital for installations including multiple cable or satellite receivers of the same brand. The AVAtrix also includes a Main IR Output for all signals returned from the remote zones.
Note: IR Routing is not a viable control method for all installations. Before planning to use the AVAtrix's IR routing system in your installation, contact our technical support personnel for more information.
Specifications
Video Parameters
- Video Formats: 480i/p, 576i/p, 720p, 1080i/p
- Input/Output Impedance: 75 ohms
- Input Ground Isolation: No
- Gain: 1
- Gain Accuracy: 2%
- 3dB Bandwidth: 150MHz
- Input Coupling: AC
- S/N Ratio: 61dB
- Max Gain/Equalization: 1.00 gain
Audio Parameters
- Input Impedance: 75 ohms/50K ohms
- Min Load Impedance: 75 ohms/10K ohms
- Multi-channel Digital: Yes
- Frequency Response: 10-50KHz
- S/N Ratio: 72dB
- THD+Noise: 0.03%
- Crosstalk: 75dB
Miscellaneous
- Connector Types (Input): RCA (YPbPr, analog audio, digital coaxial audio), Toslink (digital optical)
- Connector Types (Output): Dual RJ-45 (6 Cat 5 matrix outputs), RCA (local output)
- Dimensions: 3.5 x 16.5 x 9.6 - add 0.5 to height to include feet
- Product Weight: TBD
- Shipping Weight: 11.98 lbs.
- Agency Approvals: FCC, CE, C-tick
- DC Input Connector: 5.5 x 2.1mm
- DC Input Voltage/Polarity: 18V/Center Positive
- Max DC Input Current: 1.9AmA (1.0A with no Cat 5 Receivers)
- Heat Output: 62 BTU/hr
In the Box
- Power Supply: Model 803-170
- IR Remote Control: Model 1105BK
- Rack Mount Ears: Model 1192A
- Internal Bus Connection Cable (Pre-installed): 802-567
- User Manual
Downloads
Documents
- Product Focus Sheet (PDF file)
- Quickstart Guide (PDF file)
- User Manual (PDF file)
- Service Bulletin: How to Use AVAtrix Diagnostic Modes (PDF file)
Video
- AVAtrix Video Introduction (AVI video file)
- See video of the new AVAtrix as it was introduced at CEDIA 2008. Video from Marketnews Magazine.
Firmware and Software
- Configuration Utility: (PC application - zip archive)
- Firmware [links to AAC website]
IR Codes
- IR Codeset (CCF file)
- Raw Hex Codes (XLS file)

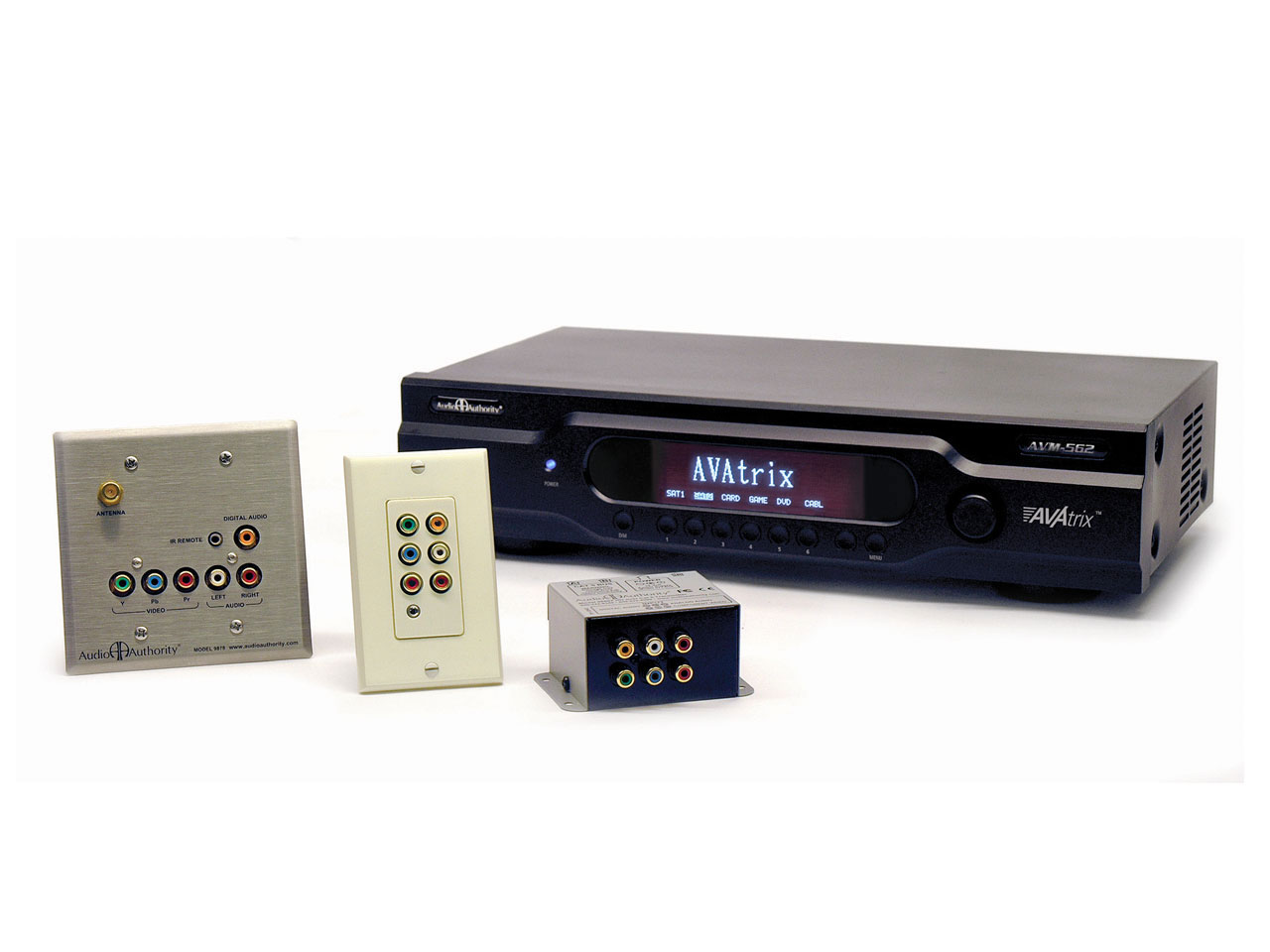

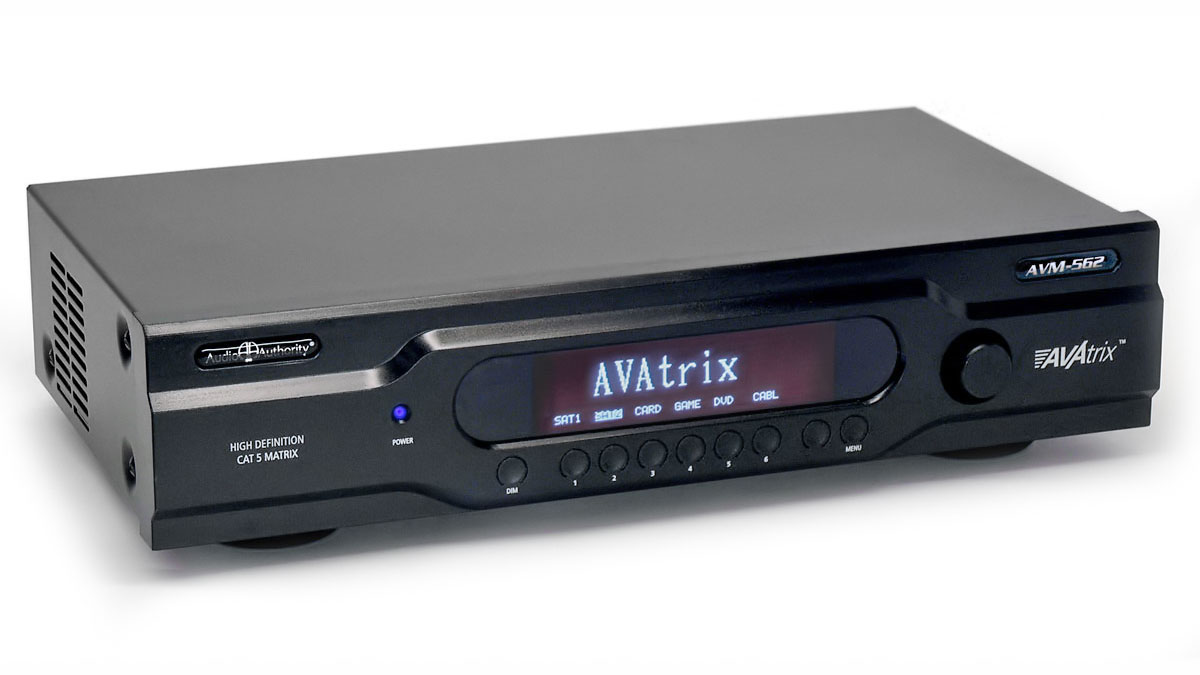

Audio Authority AVM-562 AVAtrix 2.0 6x7 HD Cat 5 Matrix Distribution System. The three receiver options are shown here as well - be sure to select the receivers that you need below, as none are included by default.

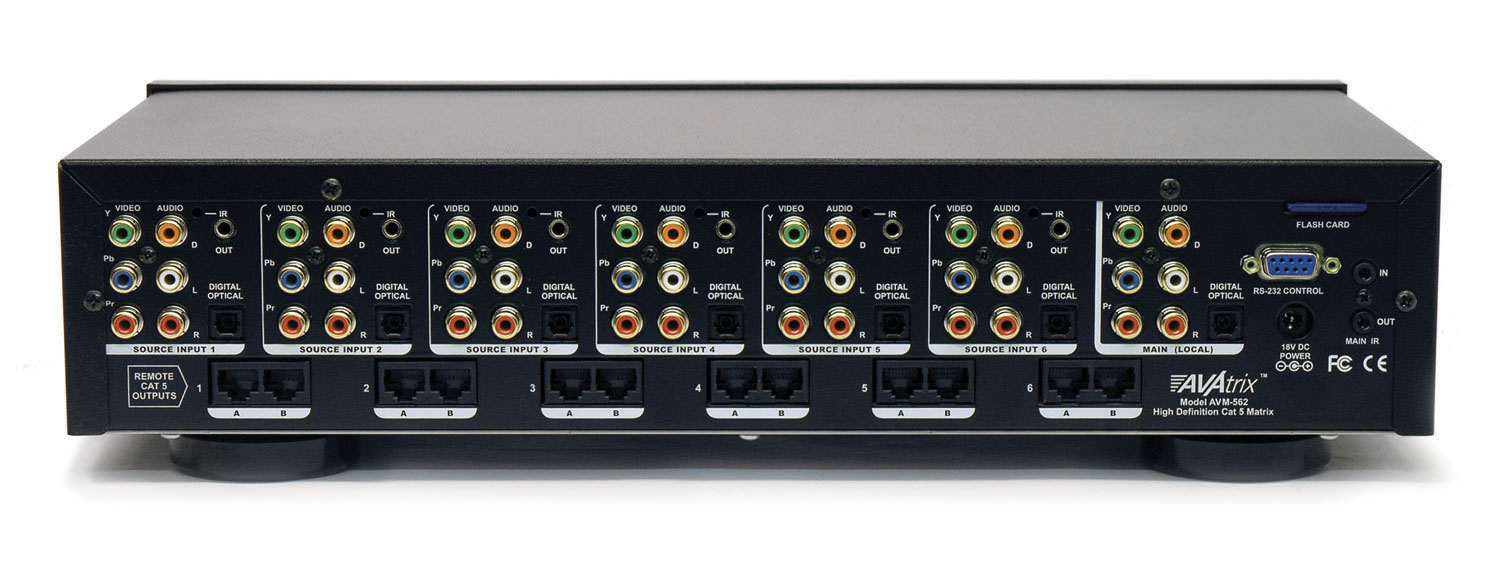

Here is a good look at the back panel of the unit.

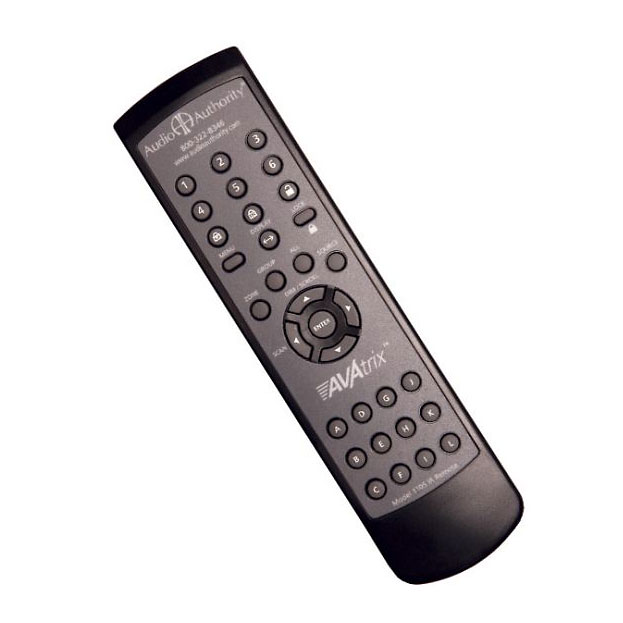

This is the included 1105BK IR Remote Control.
This photo shows the optional 9878 Stainless Steel, dual-gang, shallow-depth wallplate. For more details, click
to view product page.
(add to your system options below)
This photo shows the optional 9879 Decora-style, single-gang, wallplate. For more details, click to view product
page.
(add to your system options below)
This is the optional 9880 enclosed on-wall or in-wall Cat 5 receiver. For more details, click to view product
page.
(add to your system options below)
The optional 1173BK Audio Interface is a breakout adapter that allows the easy connection of whole-house audio amplifier
components. It provides digital and analog audio to independent audio systems with integrated switching or systems
with dedicated zone amplifiers. For more details, click to view product page.
(add to your system options below)
Add high-quality audio with the optional SonaFlex SF-16M 16-channel Zone Amplifier. For more details, click to view product page.

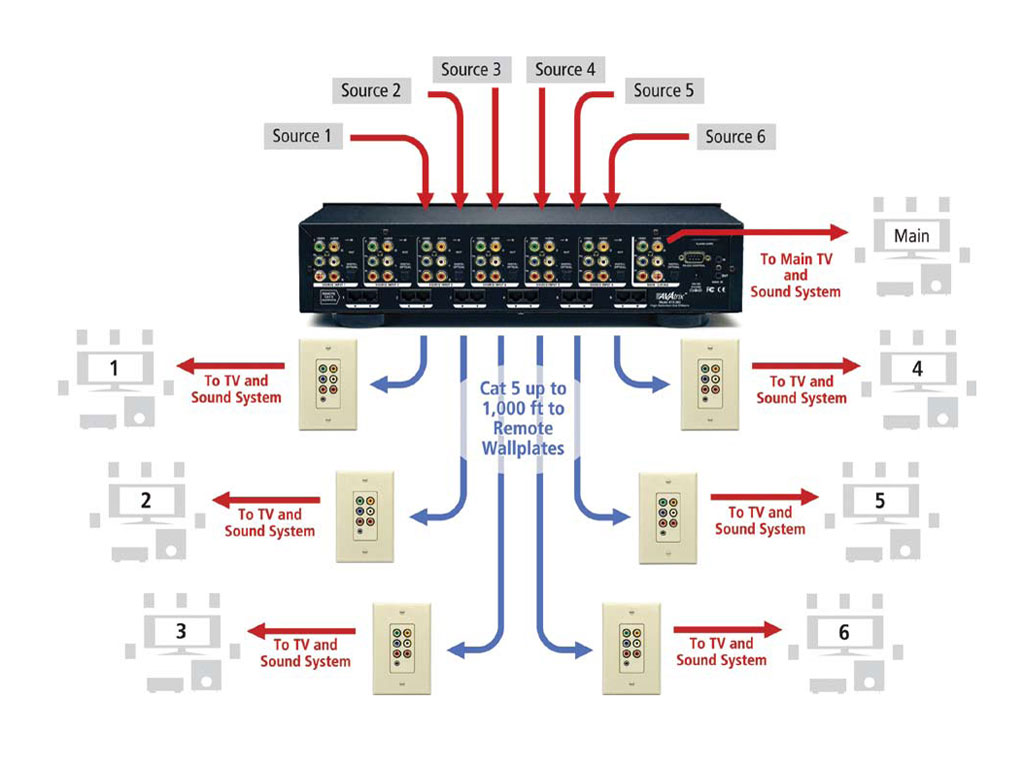

This drawing shows a typical equipment connection example.
Here is an AVAtrix product brochure in PDF format. Please notice that this publication features the AVX-661-NR, which is identical except that it has local DVI switching.
This is the Installation and Operation Manual in PDF format.
