Audio Authority 2801 HD-IP™
HDMI over Gigabit IP Transmitter

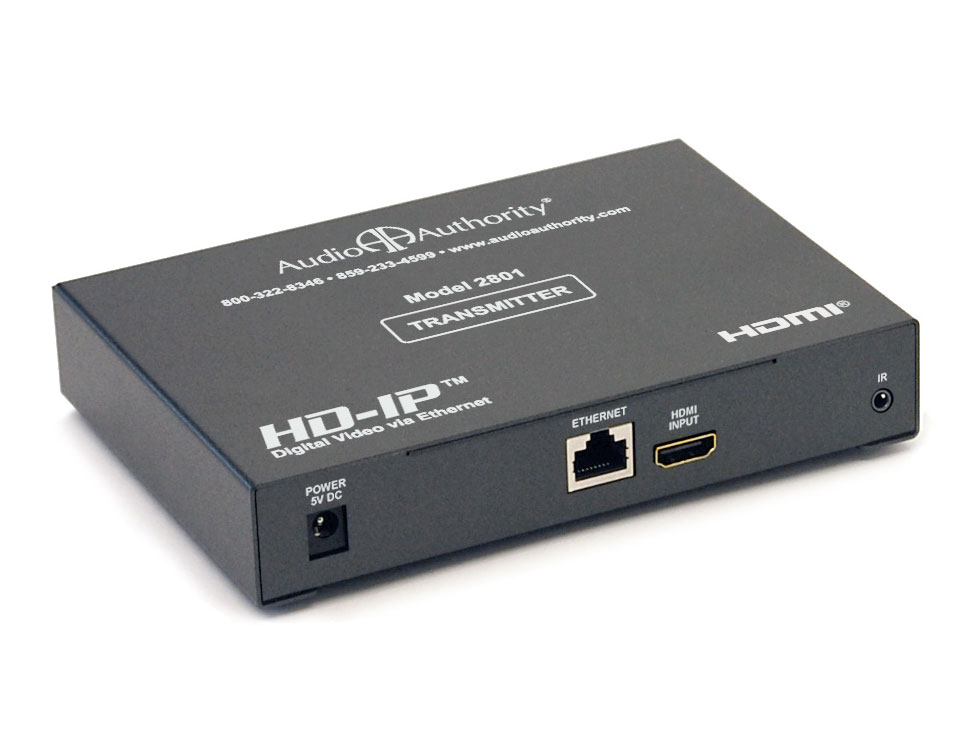

Audio Authority 2801 HDMI over IP Transmitter
Use these 2801 single-input transmitters with Audio Authority's 2811 receivers to distribute high-resolution HDMI over gigabit IP.
Advanced Gigabit Ethernet technology enables HDMI® to be transmitted over a single Cat 5e or Cat 6 cable. Transmitter/receiver system provides a long distance, high reliability solution capable of distributing the latest 1080p video sources.
The system offers exceptional picture quality and reliability, using only a single Cat 5e/6 cable for signal transmission. Connect 2811 receivers to accommodate as many as 127 HDTVs to each 2801 transmitter!
Read more about this ground-breaking system from Audio Authority on our 2800 Series product page.
Like most Audio Authority products, the 2801 comes with a one year limited warranty from the manufacturer.
Audio Authority's Description
HD-IP™ Gigabit Video Distribution Transmitter
Model 2801
- Requires Gigabit IP switches for extension or distribution/splitting
- Connector Types: 1 x HDMI Type A (female), 1 x RJ-45
- Dimensions (inches, HxWxD): 1.25 x 6.35 x 4.5
- Product Weight: 2.25 lb. (1kg)
- Agency Approvals: HDMI, HDCP, RoHS
- DC Input Connector: 5.5mm
- DC Input Voltage/Polarity: 5V/Center Positive
- Max DC Input Current: 2.5A
Overview
The 2800 system is capable of transmitting 1080p video content up to 250 feet in one run without any loss of quality, and supports an almost unlimited number of HDTV displays. Using Gigabit Ethernet technology (GbE), picture quality is maximized while overcoming the slow handshake times, poor cable integrity, and distance limitations of traditional HDMI® distribution amplifiers. Using off-the-shelf Gigabit Ethernet switches, a system can be extended for even more distance, or expanded to add more displays. This plug and play system is incredibly simple to install - just connect a single Cat 5e or Cat 6 from the 2801 transmitter to a GbE switch, then feed the cables from the switch to a network of 2811 receivers. The new HD-232 Ethernet Control Bridge offers switching control for many-to-many configurations (available soon).
- Gigabit HD-IP™ technology maximizes picture quality
- HDMI version 1.3 and HDCP version 2.0 compliant
- Supports 1080p and 720p video, plus 2-channel audio
- One source feeds an almost unlimited number of HDTVs
- Uses off-the-shelf gigabit IP switches for extension and distribution
- Plug-and-play operation - no programming or setup required
- Extends 1080p HDMI signals up to 250 feet on a single run
- Cable runs can be extended another 250 feet by adding a Gigabit Ethernet switch
Features
Key Features
- Gigabit HD-IP™ technology maximizes picture quality
- HDMI version 1.3 and HDCP version 2.0 compliant
- Supports 1080p and 720p video, plus 2-channel audio
- One source feeds an almost unlimited number of HDTVs (127)
- Uses off-the-shelf gigabit IP switches for extension and distribution
- Plug-and-play operation - no complex setup routines or programming
Specifications
Video Parameters
- Video Formats: 1080p, 720p
- Data Rate: 2.25 Gbps
- Clock Rate: 225 MHz
Audio Parameters
- Formats supported: 2-channel PCM
- Min Load Impedance: 75 ohms/10K ohms
- Multi-channel Digital: Converts multi-channel signals to 2-channel PCM for maximum compatibility
Miscellaneous
- Requires Gigabit IP switches for extension or distribution/splitting
- Connector Types: 1 x HDMI Type A (female), 1 x RJ-45
- Dimensions (inches, HxWxD): 1.25 x 6.35 x 4.5
- Product Weight: 2.25 lb. (1kg)
- Agency Approvals: HDMI, HDCP, RoHS
- DC Input Connector: 5.5mm
- DC Input Voltage/Polarity: 5V/Center Positive
- Max DC Input Current: 2.5A
In the Box
- 2801 Transmitter
- Power Supply
- User Manual
Downloads
Documents
- Product Focus Sheet: 2800 series
- User Manual: 2800 series
Here is a single-source connection example.
This is the Product Focus sheet in PDF format.
Click here to download the HD-IP Manual in PDF format.
