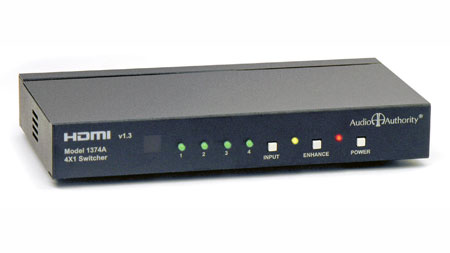

Audio Authority 1374A
4x1 HDMI ver. 1.3 Switcher - HDCP Compliant
Audio Authority 1374A 4x1 HDMI ver. 1.3 Switcher - HDCP Compliant
The Audio Authority 1374A 4x1 HDMI ver. 1.3 Switchers use Analog Devices' fast 225 MHz HDMI chipsets. This technology makes it possible to handle data rates of up to 2.25 Gbps...which means that these switchers can deliver 1080p/60 signals with color depths up to 36 bits. In addition to all of the HDMI features that we have come to expect, the 1374A also supports Bitstream audio, so LPCM, TrueHD, Dolby Digital Plus, and DTS HD: Master Audio signals are all supported.
If you are one of the many who have experienced less than stellar results with other HDMI switchers, or you just want the very best, the Audio Authority 1374A may be exactly what you are looking for!
Like most Audio Authority products, the 1374A comes with a one year limited warranty from the manufacturer.
Audio Authority's Description
4:1 HDMI ver.1.3 Switcher
Model 1374A
- 4-input, 1-output HDMI ver. 1.3 switcher
- Up to 1080p HDMI video
- Supports 36-bit Deep Color (sum of all channels)
- Supports high bitrate lossless audio, including Dolby TrueHD and DTS-HD: Master Audio
- Control via IR, RS-232, or front panel
Overview
The Model 1374A switcher is designed to allow selection of 4 inputs for display on an HDMI compliant television or signal distribution system. This version 1.3 HDMI switcher supports all standard HDTV formats (such as 1080p/60), PC formats from 1024x768 through 1920x1200, and embedded HD-Audio. The switcher can be controlled via the front panel, the included infrared remote control and/or RS-232 control.
- 4x1 HDMI ver. 1.3 switcher
- Up to 1080p HDMI video
- Supports 36-bit Deep Color (sum of all channels)
- Supports high bitrate lossless audio (including Dolby TrueHD and DTS-HD: Master Audio
- Control via IR, RS-232, or front panel
Features
Key Features
- 4 inputs, 1 output (HDMI)
- Supports HDTV resolutions up to 1080p and PC resolutions up to 1920 x 1200 @ 60Hz (WUXGA)
- Passes High Bitrate HDMI Audio
- Lip-sync compensation
- Control via front panel buttons, IR remote control and RS-232 serial control port
- HDMI certified, HDCP compliant, RoHS compliant
- Compatible with today's 120 Hz high definition televisions
- All metal construction
Video/Audio Inputs/Outputs:
- HDMI (version 1.3): 4/1
What makes the 1374A Unique?
- ATC Certification and full HDCP Compliance: Low-cost matrix systems aren't certified, and often don't conform to the HDMI and HDCP specifications, causing interoperability problems. Our HMX-144 is formally lab certified, and field tested for maximum performance and compatibility.
- Silicon Image chipsets are the industry's finest, and allow full HDMI ver. 1.3 performance
- Simple control, including discrete input selection via IR, RS-232, or front panel buttons
Specifications
Video Parameters
- Video Formats: 480i/p, 576i/p, 720p, 1080i/p, VGA through UXGA
- Color Processing: 36 bit Deep Color (12 bits per TMDS color channel)
- Included Signal Enhancement circuit
Audio Parameters
- Audio Processing: Dolby, DTS 32-192fs sample, LPCM 7.1 channel
- Multi-channel Digital: Yes
- Frequency Response: 10-50KHz
Miscellaneous
- Dimensions (HxWxD, inches): 1.2 x 7.9 x 3.5
- Shipping Weight: 2.3 lbs.
- Product Weight: 1.88 lbs.
- Data Rate: 2.25Gbps (single link)
- Signal Processing: Compensated, clock phase adjusted
- Jitter Processing: Reconstituted signal; jitter free
- TMDS Clock Speed: 225MHz
- Maximum Cable Length: Input - 20m (66 ft.) @ 1080p/8 bit; Output - 15m (49 ft.) @ 1080p/8 bit
- Agency Approvals: FCC, CE, RoHS
- DC Input Connector: locking type
In the Box
- IR remote control
- Power Supply
- Jack screws for locking HDMI ports
- User Manual
Downloads
Documents
IR Codes
- IR Codeset: 1374A (CCF file) [links to AAC site]
- Raw Hex Codes Download (XLS file) [links to AAC site]
- Find in Harmony's Database under "Amplifier" > "AV Switch" category

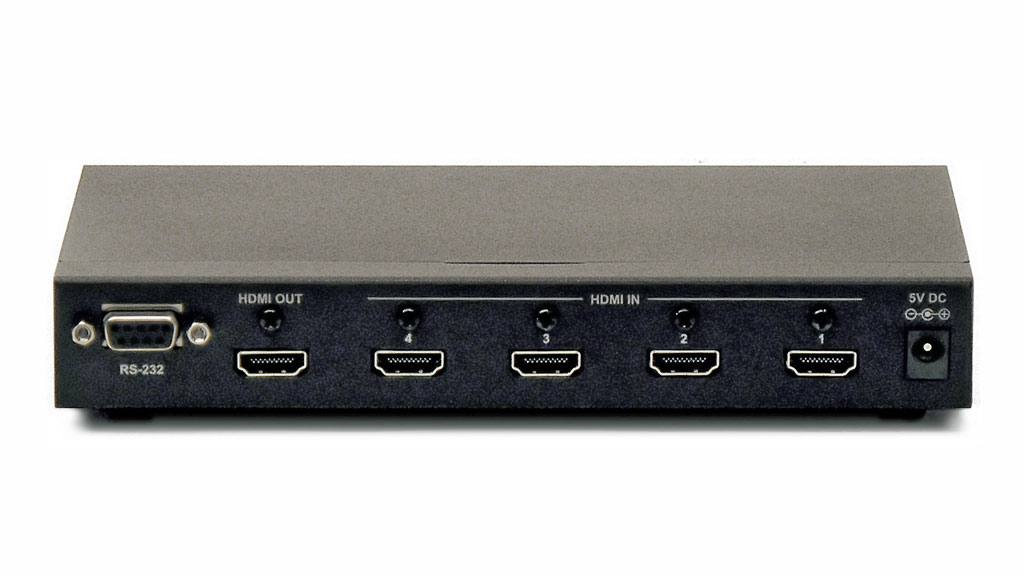

The back view shows the the convenient 4 HDMI inputs, the HDMI output, the RS-232 and the power connections.
The IR remote control, included in the box, is one of several ways to control the 1374A.
The 1374A product focus sheet provides additional information. Click to download PDF.
Here is the User Manual. Click to download PDF.
