Audio Authority 1366 PC / HD Scaler
with Advanced Video Processing
Audio Authority 1366 PC / HD Scaler with Advanced Video Processing
Advanced video processing features such as scaling and overscan control, in addition to colorspace conversion, make the Audio Authority 1366 PC / HD scaler the ideal choice for boardroom, classroom, or anywhere that varying sources may need to be connected to a display device.
The 1366 handles a wide range of computer-style input formats, ranging from 640 x 480 to 1920 x 1200, and HDTV-style input formats from 480i all the way up to 1080p.
Any of the wide range of input formats can be converted to the same wide range of output formats, so for example, a notebook computer can easily be connected to an HDTV, or just as easily, an HDTV source can be connected to a computer display.
The on-screen menu system makes the 1366 easy to configure resolution, format, brightness, contrast, hue, saturation, sharpness and RGB levels, and the non-volatile memory ensures that your configuration will be preserved even if power is lost. This versatile scaler also includes a pass-through output, making it simple to feed a local monitor in addition to a projector.
The 1366 ships with a short VGA-male to 3-RCA-male breakout cable, and of course we also have additional cables available separately, if you need them.
Like most Audio Authority products, the 1366 comes with a one year limited warranty from the manufacturer.
Audio Authority's Description
PC / HD Scaler with Advanced Video Processing
Model 1366
- Converts VGA and component video signals
- Onboard scaling engine supports resolutions up to 1080p and 1920x1200
- Includes overscan, aspect ratio, and other scaling adjustments
- OSD user interface (On Screen Display)
- Contrast, brightness, hue, saturation, sharpness, RGB levels, and aspect ratio adjustments for output signals
- Passthrough output preserves the original source video format
- Includes VGA-15 to 3-RCA cable
Overview
Converts and scales VGA (RGB) to Component Video (YPbPr) as shown in a typical application below. It also converts Component to VGA. Perfect for boardroom applications or home integration, the 1366 solves all the common challenges of integrating PC and HD components. Most scalers convert resolution and refresh rate, but don't correct overscan errors, meaning a large portion of a computer image can be lost outside the range of an HDTV screen. The 1366 has image size adjustments to correct for overscan problems.
Input and Output Capabilities
- PC input resolutions: RGBHV signals from VGA through WUXGA
- HDTV input resolutions: 480i through 1080p @ 60Hz
- PC output resolutions: RGBHV signals from VGA through WUXGA
- HDTV output resolutions: 480i through 1080p @ 60Hz
Features
Key Features
- Overscan, aspect ratio, and other scaling adjustments
- OSD user interface (On Screen Display)
- Contrast, brightness, hue, saturation, sharpness, RGB levels, and aspect ratio adjustments for output signals
- Passthrough output preserves the original source video format
- Locking power connector ensures system stability
- Includes VGA-15 to 3-RCA cable
Specifications
- I/O Signal Levels:
RGBHV @ 0.7V p-p; 75, H&V Sync @ 3-5V p-p, TTL Y @ 1V p-p; 75. Pb, B-Y, Pr, R-Y @ 0.7V p-p, 75 - I/O Connectors: HD15 female, (1) input, (1) bypass output, (1) output
- Controls: Side panel buttons (Up, Down, and Menu/Enter)
- Information Menu: OSD (On Screen Display)
- Video Adjustments: Brightness, contrast, color, saturation, sharpness, R-G-B levels, aspect ratio
- Size (H x W x D): 0.98 x 4.16 x 6.18 inches (25x105x102mm)
- Weight (net): 0.73lbs (332g)
- Warranty: One year parts and labor
- Power Source: Model 571-022, 100-240 VAC to 5VDC adapter
- Environmental: Operating temperature: +32° to +122° F (0° to +50° C)
Downloads
Documents
- User manual (PDF)
- Comparison: Video Converters (PDF)
- Product Focus sheet (PDF)
- READ BEFORE PURCHASING! "The Best of Both Worlds" Viewing
an PC on a TV
Updated April, 2009 (PDF, 4 pages)

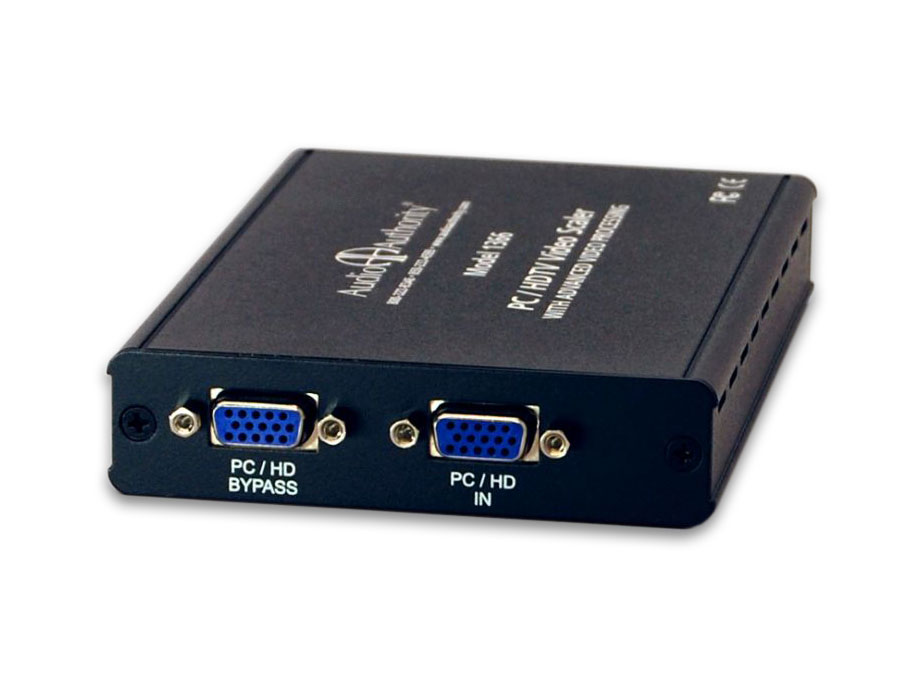

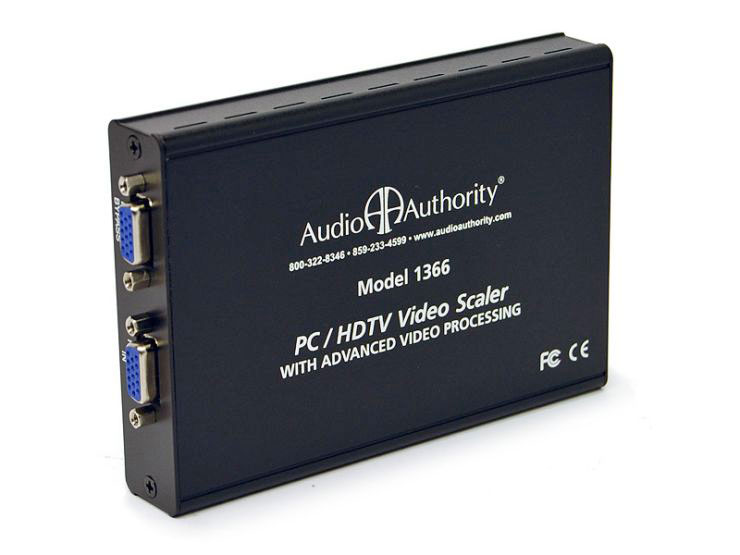

Shown here is the left panel, which includes the input connector and a bypass output.

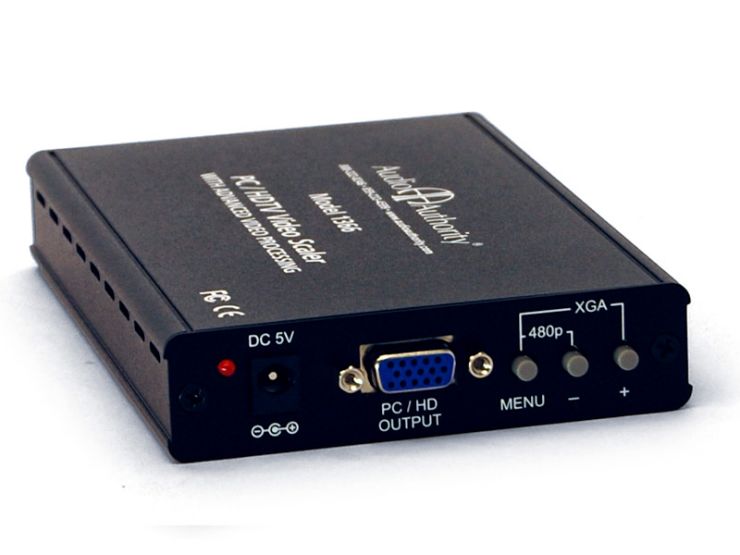

This is the right side. This panel includes a power status LED, power connector, video output connector, and push-buttons for navigating the onscreen menu system.
This drawing shows the connection panels in greater detail.

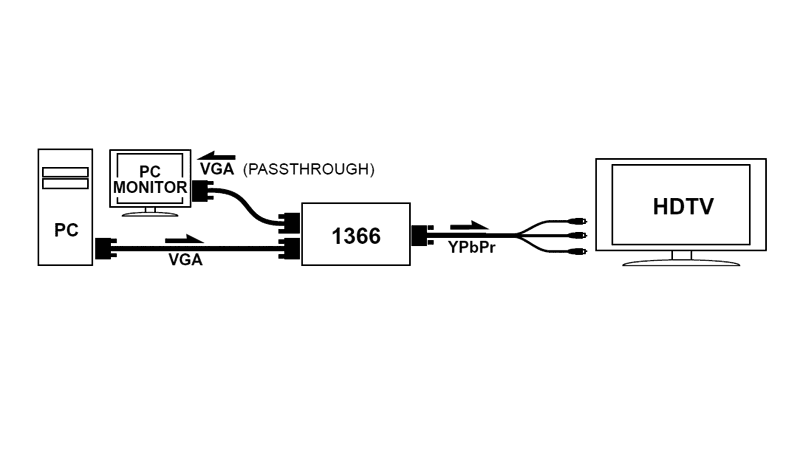

Shown here is a typical connection example.
Here is the 1366 product focus sheet. Click to download PDF.
Here is the User Manual - click to download in PDF format.
This is the Quick Start Guide. Click to download PDF.
