Audio Authority 1109
IR Injector for AVAtrix

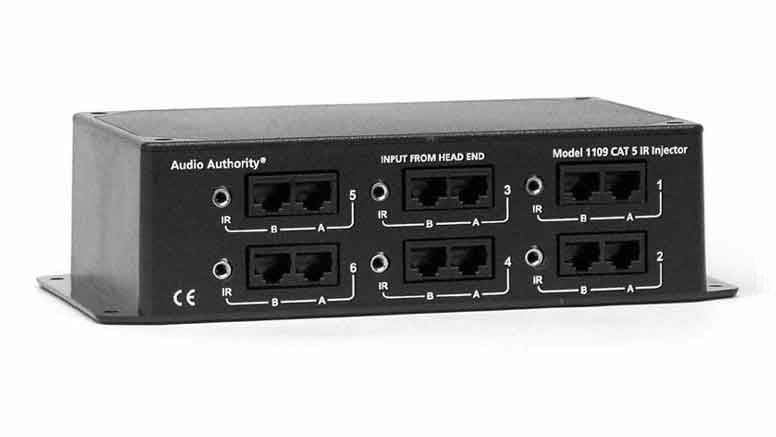

Audio Authority 1109 IR Injector for AVAtrix Systems
This model has been superseded - please click here to see the new model.
The following is presented for informational purposes only:
The Audio Authority 1109 IR Injector makes it easy to inject (or sample) low-voltage signals to/from the Cat-5 pathway between AVAtrix or SixDrive systems and their system receivers. Each port is isolated from the other ports, so as an example, one pathway can be set up to sample in-coming IR signals, while another pathway in the same system can be used to inject out-going IR signals.
As an example, this could be used in a system where the operator wants to be able to send IR signals to multiple remote system wallplates, providing a quick and easy way to turn on/off multiple HDTV monitors from one location.
Like most Audio Authority products, the 1109 comes with a one year limited warranty from the manufacturer.
Audio Authority's Description
AVAtrix IR Injector
Model 1109
Allows IR control signals to be sent from an IR device near the AVAtrix out to IR emitters connected to Cat 5 receiver IR jacks in the remote zones. Connections for up to six Cat 5 zone receivers.

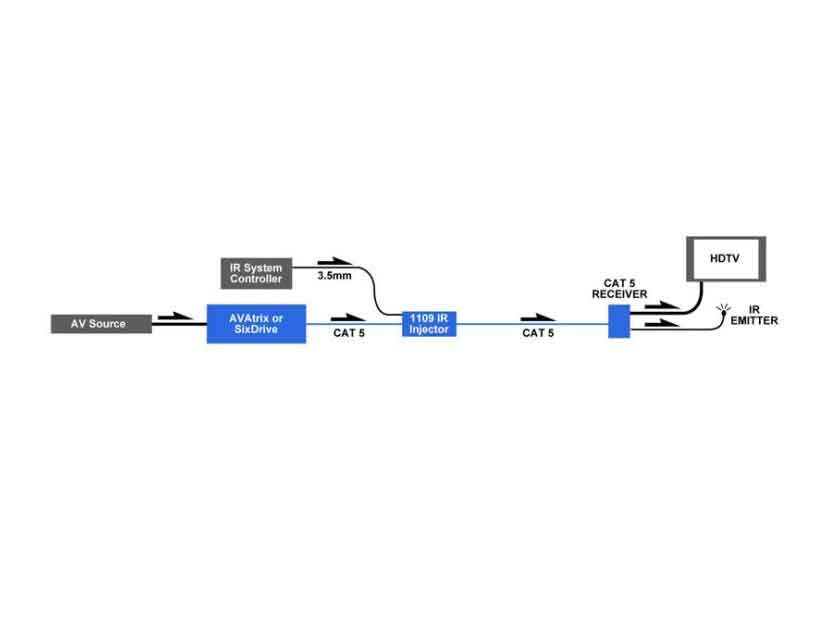

This product is designed to allow any wired IR device to send signals to or receive signals from IR devices plugged into the Cat 5 receivers used with an AVAtrix. Typically, the 1109 would be used to send IR from a control device near the AVAtrix out to multiple TVs.

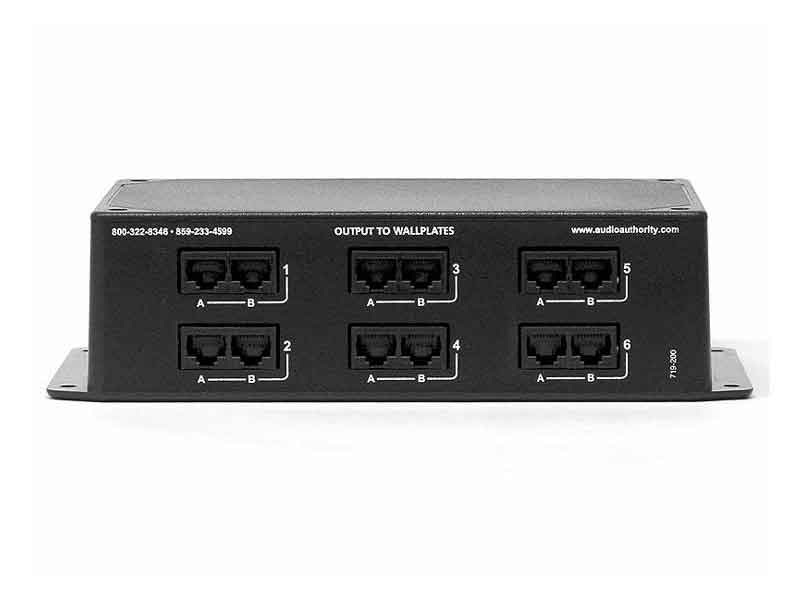

When installed in-line between the AVAtrix and its six Wallplates, the IR jack on each Wallplate is hard-wired to a corresponding jack on the Model 1109.
These jacks are isolated from all other system wiring and can therefore be used for any kind of low speed signal suited for Category 5 cable conductors. The Model 1109 is compatible with any Audio Authority A/V Cat 5 receiver, including Models 9878, 9879 and 9880. Each Cat 5 receiver IR pathway operates independently, so one pathway could be set up for in-coming IR signals and another pathway in the same system could be set up for out-going IR signals.
- Injects IR signals into, or extracts IR signals from, Cat 5 Receiver bus
- Passive device, requires no power source
- Works with Cat 5 outputs from AVAtrix™ and SixDrive™ (Models AVM-562, AVX-562,
AVX-561,
AVX-661, 1170, 1171, and 1176) - Works with any Audio Authority Cat 5 receiver including Models 9878, 9879, and 9880
- Each Wallplate/Receiver IR pathway operates independently
