Audio Authority HMX-144
4x4 HDMI ver. 1.3 Matrix Switcher
Audio Authority HMX-144 4x4 HDMI ver. 1.3 Matrix
The the Audio Authority
HMX-144 4x4 HDMI ver. 1.3 Matrix switcher brings all of the HDMI v1.3 features
that you want, including 1080p, Deep Color, and lossless audio formats.
In a world full of knock-offs and cheap imitations, it is gratifying to find that there are still some great American companies designing and marketing great products like the the HMX-144. Audio Authority has chosen best-in-class HDMI chipsets from Silicon Image to ensure that the HMX-144 delivers the highest level of performance and compatibility.
As you would expect from a great HDMI matrix switcher, the HMX-144 allows you to route any of its four inputs to any or all of its four outputs. The unit can be controlled from the front panel, or with the included IR remote control. Also included is an RS-232 serial port for integration with advanced third-party control systems.
Like most Audio Authority products, the HMX-144 comes with a one year limited warranty from the manufacturer.
Audio Authority's Description
4x4 HDMI ver. 1.3 Matrix
Model HMX-144
4x4 HDMI version 1.3 matrix, supporting 1080p video, high bitrate lossless audio, and 30-bit deep color. Controllable via RS-232, IR, and front panel controls, the device can be easily integrated with third party control systems.
Rack mountable with rack ears (included). 4 inputs, 4 outputs (matrixed).
Overview
The HMX-144 stands out in a world of virtually-identical matrix systems as a highly reliable, fully tested and complaint system oriented towards small custom installations. Capable of distributing today's latest formats, including 1080p video with 30-bit deep color and lossless audio, the system also has unique features like locking HDMI cable compatibility and advanced serial controls for simple systems integration.
- 4x4 HDMI version 1.3 Matrix
- Up to 1080p HDMI video
- Supports 30-bit Deep Color (sum of all channels)
- Advanced Silicon Image chipsets
- Rack mountable with included hardware
- Control via IR, RS-232, or front panel
Note: A discrepancy has been found in the warranty statement in some versions of the HMX-144 user manual. The warranty of the HMX-144 is one year, parts and labor.
Features
Key Features
- 4-in, 4-out HDMI matrix
- Supports deep color: 10 bits per TMDS channel (30 bit, sum of all channels)
- Supports 480i-1080p and multiple PC resolutions
- Supports Dolby Digital Plus, Dolby® Digital TrueHD, DTS-HD: Master Audio, and LPCM
- HDMI version 1.3 compliant, HDCP version 1.1 compliant
- IR remote control, RS-232 control, or front panel control
- Accepts locking HDMI cable
- Rack mountable with included hardware
- IR extender included
Video/Audio Inputs/Outputs:
- HDMI (version 1.3): 4/4
What makes the HMX-144 Unique?
- ATC Certification and full HDCP Compliance: Low-cost matrix systems aren't certified, and often don't conform to the HDMI and HDCP specifications, causing interoperability problems. Our HMX-144 is formally lab certified, and field tested for maximum performance and compatibility.
- Silicon Image chipsets are the industry's finest, and allow full HDMI ver. 1.3 performance
- Simple control, including discrete input selection via IR, RS-232, or front panel buttons
Specifications
Video Parameters
- Video Formats: 480i/p, 576i/p, 720p, 1080i/p, VGA through UXGA
- Color Processing: 30 bit Deep Color (10 bits per TMDS color channel)
Audio Parameters
- Audio Processing: Dolby, DTS 32-192fs sample, LPCM 7.1 channel
- Multi-channel Digital: Yes
- Frequency Response: 10-50KHz
Miscellaneous
- Connector Types (Tx Input, Rx Output): RCA (YPbPr, analog audio, digital coaxial audio), Toslink (digital optical)
- Connector Types (Tx Output, Rx Input): Dual RJ-45 (6 Cat 5 matrix outputs), RCA (local output)
- Dimensions (HxWxD, inches): 1.75 x 17.2 x 6.9
- Product Weight: 6.8 lbs
- Shipping Weight: 7.5 lbs.
- Data Rate: 2.25Gbps (single link)
- Signal Processing: Compensated, clock phase adjusted
- Jitter Processing: Reconstituted signal; jitter free
- TMDS Clock Speed: 225MHz
- EDID: Automatic or manual monitor discovery
- Maximum Cable Length: Input - 20m (66 ft.) @ 1080p/8 bit; Output - 15m (49 ft.) @ 1080p/8 bit
- Agency Approvals: FCC, CE, RoHS
- DC Input Connector: locking type
In the Box
- IR remote control
- IR extender
- Power Supply
- Rack mount ears
- Jack screws for locking HDMI ports
- User Manual
Downloads
Documents
IR Codes

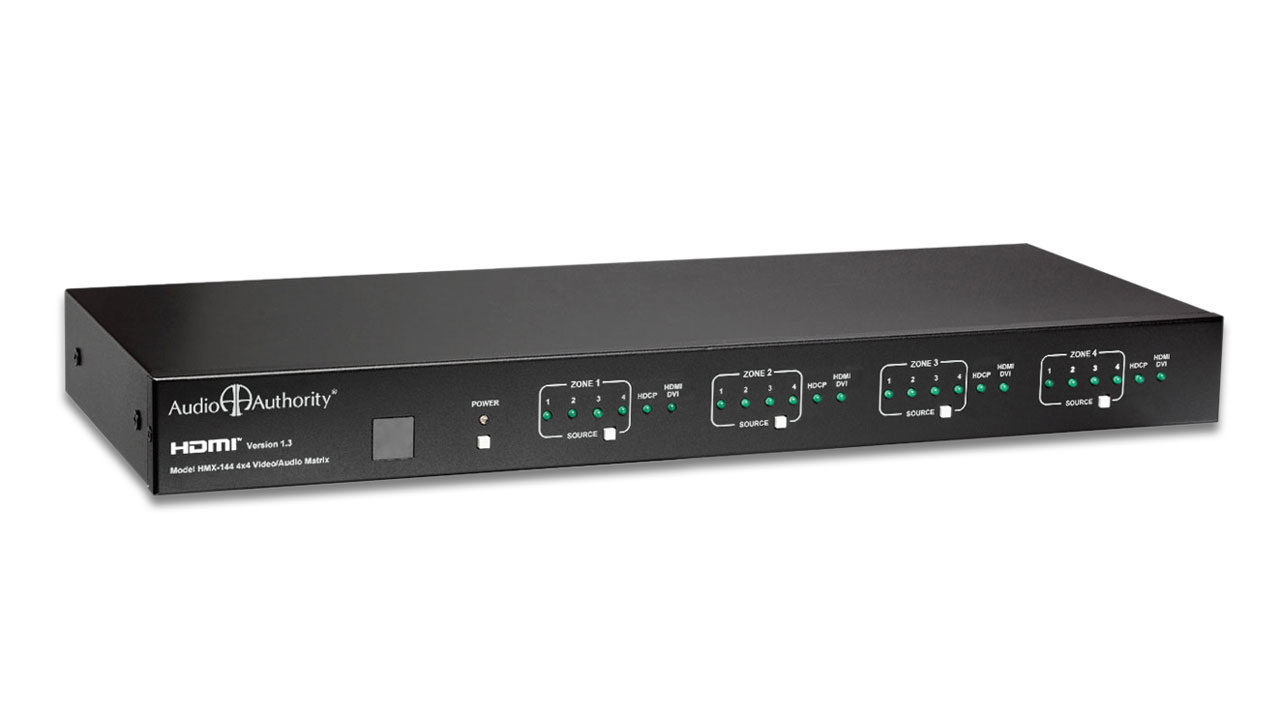

Here is a good look at the front and back panels.

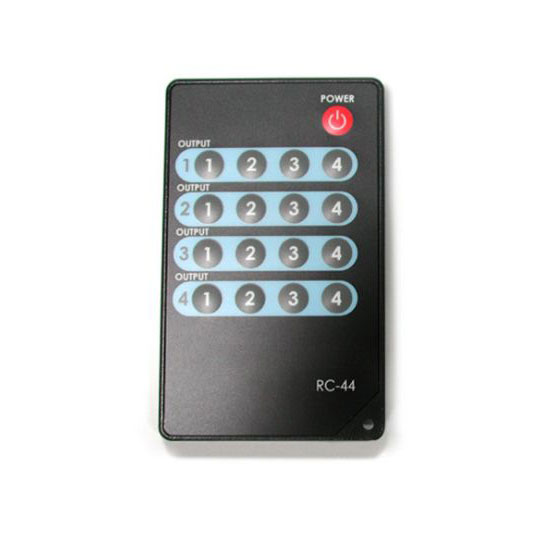

Shown here is the included IR remote control.
Click here to download the HMX-144 Manual in PDF format.
Click here to download the HMX-144 Manual in PDF format.
