The Intelix S-V16AR 16-Channel Active Receiver Balun is part of Intelix's Security Solutions family
of products. By adding optional S-V16AR-MOD channel modules, the S-V16AR can receive composite video from as many as 16
remote sources, such as cameras. Two buffered video outputs are provided on each channel module,
so up to 32 monitors and/or DVRs can be driven.
Video is transmitted from each remote location over a single Cat 5 / Cat 6 cable by using optional
S-V1AT, S-V1ST, or S-BB4 baluns. Operating range when using passive S-V1ST or S-BB4 send baluns,
is up to 1850 feet. If you need even more range, the active V1AT send baluns extend the maximum
distance to 4000 feet.
With integrated features like ground loop isolation, surge suppression and automatic video
adjustment, the S-V16AR can save money when compared to using discrete devices.
Like most Intelix products, the S-V16AR comes with a two-year limited warranty.
Intelix's Description
|
The Intelix S-V16AR receives composite video up to 4,000 feet over standard twisted pair cabling, such
as Cat 5 and Cat 6. When used in conjunction with compatible passive Intelix baluns, the S-V16AR
effectively extends cabling distances and replaces traditional bulky video cable.
A rack-mounted card frame system, the S-V16AR supports up to 16 active input modules (sold separately),
thereby allowing custom configurations depending on the application requirements. Each channel features
dual buffered BNC outputs, built-in surge suppression, ground loop isolation, gain and loss control,
diagnostic video detection, and automatic video adjustment. The S-V16AR is ideal for security and
monitoring applications with such equipment as CCTV cameras, monitors, DVRs, video sequencers, video
multiplexers, quads, switchers, and servers.
When signal quality matters, choose Intelix.
| Technical Specifications |
| Maximum Distance* |
active system: 4,000 feet
passive system: 1,850 feet
|
| Compatible Active Baluns |
S-V1AT |
| Compatible Passive Baluns |
S-V1ST |
| Supported Video |
all baseband video signals
SECAM, NTSC, PAL
|
| Frequency Response |
DC to 6 MHz |
| Signal Band |
250 MHz |
| Balance Band |
0-6 MHz |
| Attenuation |
1.5 dB max |
| Interference Rejection |
greater than 75 dB
|
|
Video Output Protection
|
2KV (common mode), 10/700 μs
IEC 6100-4-5/1955 GB/T 1726, 5-1999
|
| Video Input Protection |
2KV (different mode)
4KV (common mode), 10/700 μs
IEC 6100-4-5/1955 GB/T 1726, 5-1999
|
| Over-current Protection |
100 mA max
|
| Compatible Cable |
Cat 5, Cat 5e, Cat 6, Cat 7
|
| CMRR |
70 dB
|
| Transient Immunity |
6000V, 1.2 μs x 50 μs |
| MTBF |
greater than 30,000 hours
|
| External Power |
switching supply
90 - 250 VAC
50 - 60 Hz
|
| Input Connectors |
fully populated: 4 RJ45 and 16
terminal blocks
|
| Output Connectors |
32 female BNC
|
| Temperature |
operating: 32 to 131 F (0 to 55 C)
storage: -4 to 185 F (-20 to 85 C)
humidity: up to 95%
|
| Signal Adjustment |
automatic |
|
Diagnostic
|
power LED (blue)
signal strength LED (yellow)
|
| Enclosure |
RF shielded metal |
| Dimensions |
16.9” x 5.2” x 2.6”
1.5 RU
|
| Compliancy |
FCC, CE, RoHS |
| Included Accessories |
(2) 19” rack-mounting ears
(2) 19” rack-mounting handles
|
| Ordering Information |
S-V16AR: one rack-mount chassis
S-V16AR-MOD: one input module
|
| Warranty |
two years |
|
|
* Distances, picture and audio quality may be affected by cable grade, cable quality, source and
destination equipment, RF and electrical interference, and cable patches. Intelix specifications are based
on straight-through cabling with standard-grade Cat 5.
Design with Intelix and Design with Intelligence
|
Why Cable Solutions?
No one works harder than we do to get your order shipped out to you fast! On business days, orders that are funded
by noon will ship the same day. Orders funded on weekends or holidays will ship the next business day.
Cable Solutions is an Intelix Authorized Reseller, so our customers get the full benefit of Intelix's factory-direct
support and warranty.
Customer service is our first priority. We do our best to help you find the best solutions for your particular
application. We're enthusiasts too, so we know what it's like to wait for cables and accessories that are needed
to hook up new gear. We also know how important it is to be able to get a response when you need help, so you'll
often find us working long hours in an effort to get you the answers that you need.
Design excellence, high quality materials, meticulous workmanship, and superior service...put it all together and
you get a superior product. Don't get stuck with bad advice, poor service, slow shipment or an inferior product.
If you want the best, here it is.
Miscellaneous
Please click here to read our policies and disclaimer. Thanks for reading all
of this!
|
Click on any of the pictures below for a closer view!
Intelix S-V16AR 16-Channel Active Receiver Balun. An optional channel module is shown in
the foreground.
Here is a closer look at the front and back panels.
Shown here is an optional
S-V16AR-MOD Channel Module. Add up to 16 to your cart below.

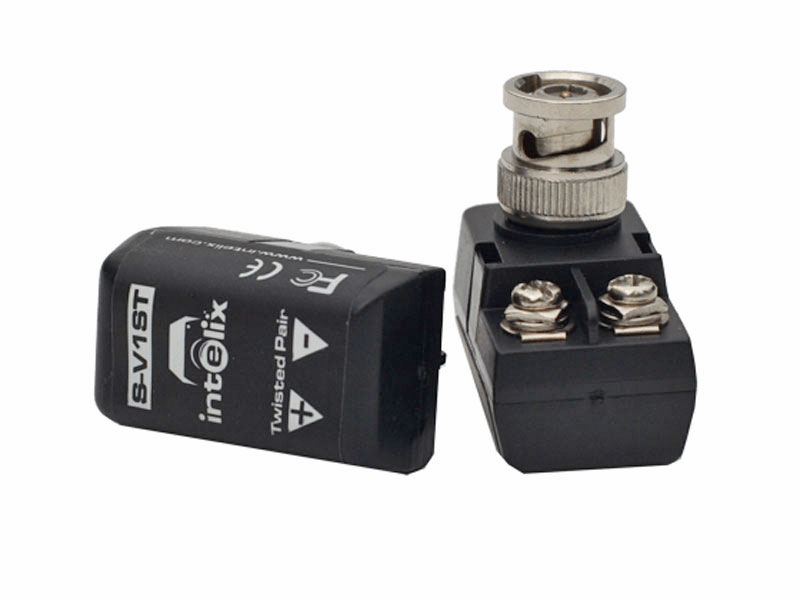

Here is an optional
S-V1ST passive video transmitter. Add to your cart below.

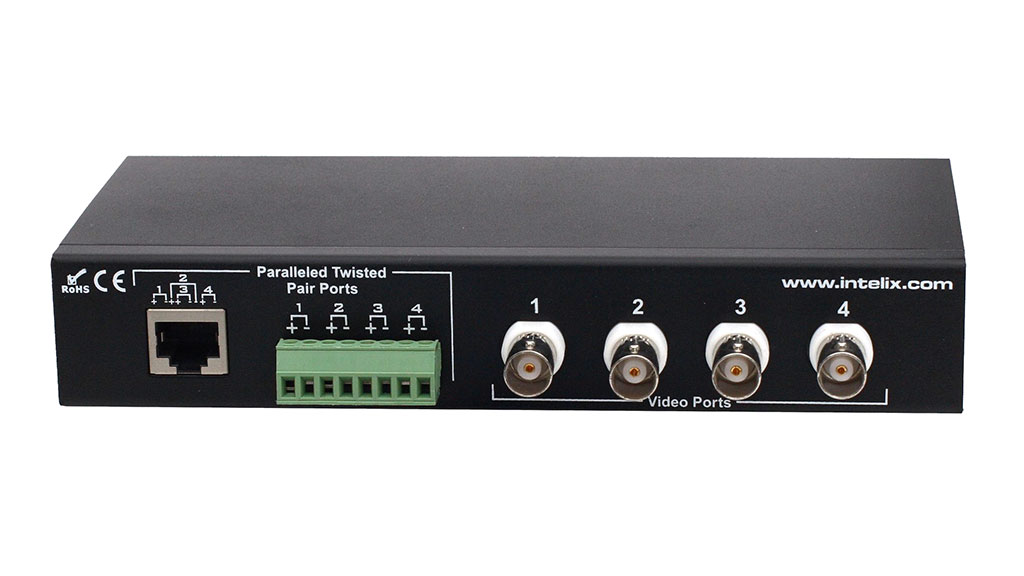

This is an optional
S-BB4 4-channel passive video transmitter. Add to your cart below.

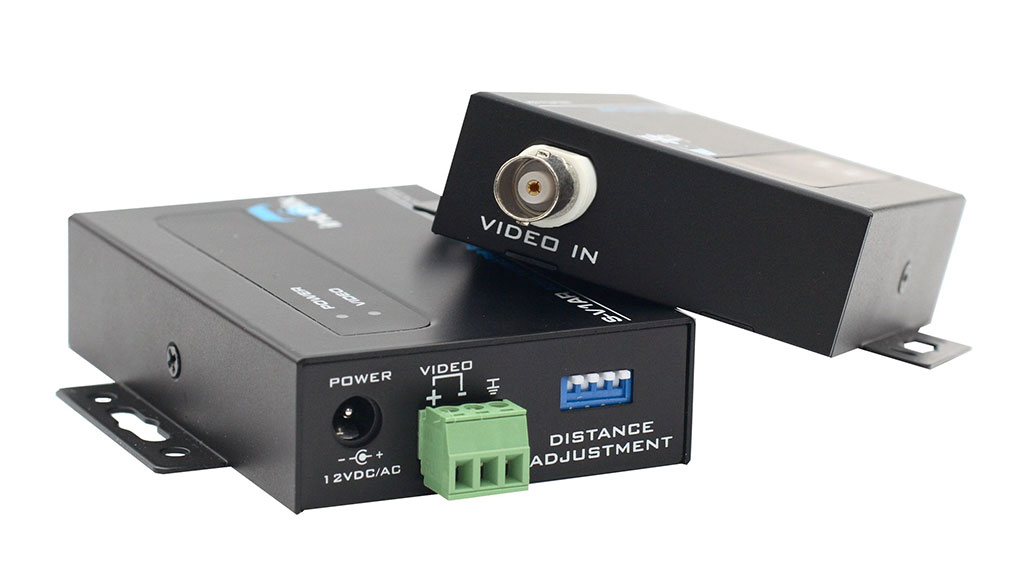

Pictured here is an optional S-V1AT active video transmitter. Add to your cart below.
Example System: Three cameras are transmitted to an S-V16AR rack balun via twisted pair.
The transmit baluns are Intelix S-V1AT and S-V1ST transmitters.
Example System 2: Five cameras are transmitted to an S-V16AR rack balun via twisted pair. The transmit baluns are Intelix S-BB4 and S-V1ST transmitters.
Here is the spec sheet - click to download PDF
Here is the Installation Manual in PDF format.
